TSXPBY100
مجموعه اتصال برای Profibus DP، فرمت استاندارد، 400 میلی آمپر در 5 ولت DC داخلی مدل TSXPBY100
Profibus DP V0 - module kit - for Premium PLC
×
![]()
مشخصات کامل
Range of product
Profibus DP
Range of product
Product or component type
Profibus DP V0 module kit
Product or component type

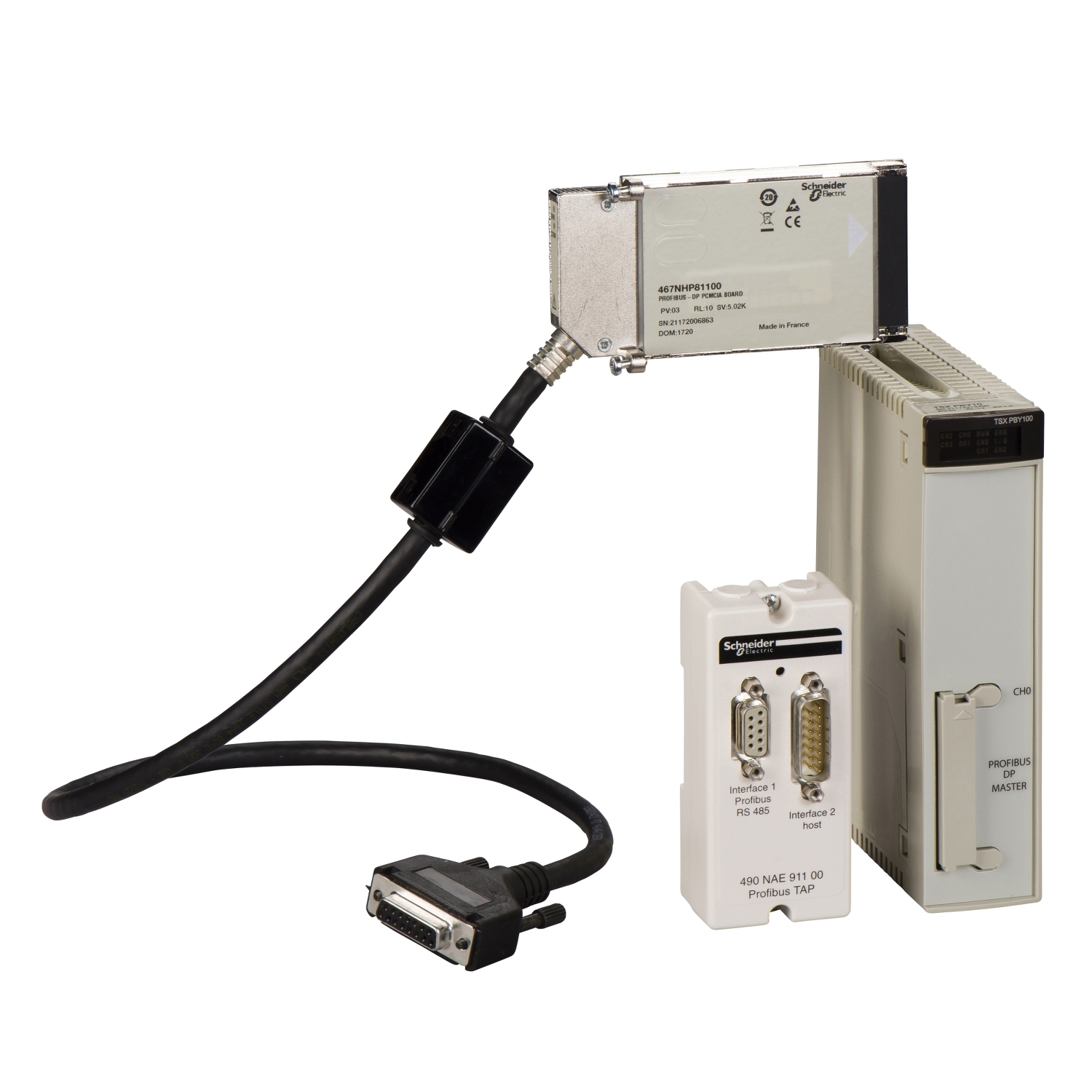

Kit composition
Host module for the PCMCIA card
T-junction box enabling the tap link of the main bus
Profibus DP PCMIA card with its integrated connecting cable (0.6 m)
T-junction box enabling the tap link of the main bus
Profibus DP PCMIA card with its integrated connecting cable (0.6 m)
Kit composition
Product compatibility
For Atrium slot-PLC
For Premium PLC
For Premium PLC
Product compatibility
Structure type
Industrial bus
Structure type
Physical interface
RS485
Physical interface
Method of access
Master class 1
Master class 2
Master class 2
Method of access
Mode of transmission
NRZ
Mode of transmission
Transmission support medium
twisted shielded pairs cable
Transmission support medium
Transmission rate
12 Mbit/s, 100 m bus without repeater
12 Mbit/s, 400 m bus with 3 repeaters
9.6 kbit/s, 1200 m bus without repeater
9.6 kbit/s, 4800 m bus with 3 repeaters
12 Mbit/s, 400 m bus with 3 repeaters
9.6 kbit/s, 1200 m bus without repeater
9.6 kbit/s, 4800 m bus with 3 repeaters
Transmission rate
Number of server device(s)
126
Number of server device(s)
Number of inputs
3872
Number of inputs
Number of outputs
3872
Number of outputs
Communication service
Check slave configuration (on power up) class 1 master
Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master
No master/master dialogue class 2 master
Profibus FMS message handling not supported class 1 master
Profibus FMS message handling not supported class 2 master
Read/write DP slave I/O data class 1 master
Set slave parameters (on power up) class 1 master
Transfer slave diagnostic data class 1 master
Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master
No master/master dialogue class 2 master
Profibus FMS message handling not supported class 1 master
Profibus FMS message handling not supported class 2 master
Read/write DP slave I/O data class 1 master
Set slave parameters (on power up) class 1 master
Transfer slave diagnostic data class 1 master
Communication service
Current consumption
400 mA at 5 V DC internal
Current consumption
Module format
Standard
Module format
Net weight
0.87 kg
Net weight
Ambient air temperature for operation
0…60 °C
Ambient air temperature for operation
Ambient air temperature for storage
-25…70 °C
Ambient air temperature for storage
Relative humidity
5…95 % without condensation
Relative humidity
Operating altitude
<= 2000 m
Operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
24.5 cm
Package 1 Height
Package 1 Width
24.5 cm
Package 1 Width
Package 1 Length
27.5 cm
Package 1 Length
Package 1 Weight
1.309 kg
Package 1 Weight
Warranty
18 months
Warranty
