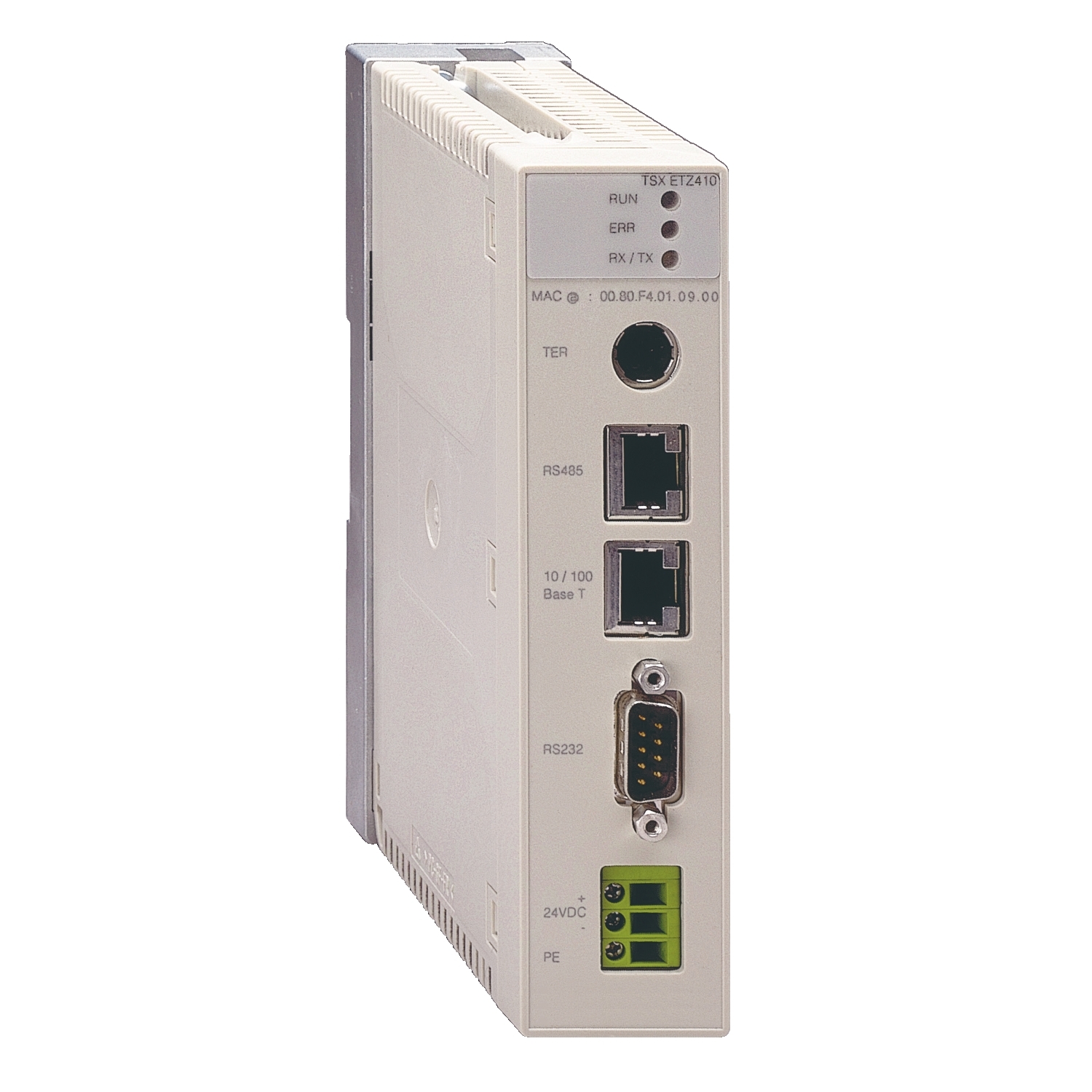

TSXETZ410
کارت TSX MICROO مدل TSXETZ410
Ethernet module - 10/100 Mbps, 56 kbps - Transparent Ready - 24 V DC supply
×
![]()
مشخصات کامل
Range of product
FactoryCast Gateway
Range of product
Product or component type
Ethernet module
Product or component type
Kit composition
Gateway module
User manual
Web Designer software (CD-ROM)
User manual
Web Designer software (CD-ROM)
Kit composition
Concept
Transparent Ready
Concept
Type of modem
Via satellite
Via radio
Via telephone line
Via radio
Via telephone line
Type of modem
Structure type
Heterogeneous industrial bus Ethernet conforming to IEEE 802.3
Structure type
Topology
Star Ethernet
Tree-structure Ethernet
Tree-structure Ethernet
Topology
Transmission rate
10/100 Mbit/s for Ethernet
56 kbit/s maximum for serial link by modem
56 kbit/s maximum for serial link by modem
Transmission rate
Web services
Web pages defined by the user (8 MB available)
Access function to the PLC data and variables Data Editor
Communication diagnostics function
Graphic objects editor
PLC diagnostics system function RackViewer
Maximum simultaneous connection of 8 standard browsers
IP configuration for TSX ETZ 410/510 module via standard browser
Access function to the PLC data and variables Data Editor
Communication diagnostics function
Graphic objects editor
PLC diagnostics system function RackViewer
Maximum simultaneous connection of 8 standard browsers
IP configuration for TSX ETZ 410/510 module via standard browser
Web services
Communication service
1 kB client/server requests for Uni-Telway
128 byte client/server requests for Uni-Telway
128 byte synchronous requests for Modbus
Client/server mode for Modbus
Client/server mode for Uni-Telway
128 byte client/server requests for Uni-Telway
128 byte synchronous requests for Modbus
Client/server mode for Modbus
Client/server mode for Uni-Telway
Communication service
[Us] rated supply voltage
24 V DC
[Us] rated supply voltage
communication port protocol
Serial link by modem
Ethernet
Ethernet
communication port protocol
Physical interface
RTC link RS232 for serial link by modem
Physical interface
Exchange mode
Half or full duplex serial link by modem
Manchester-type baseband Ethernet
Manchester-type baseband Ethernet
Exchange mode
Transmission support medium
Double shielded twisted pair of type STP 10BASE-T ETHERNET
Ethernet cable category 5 100BASE-T ETHERNET
Shielded RS232 cable serial link by modem
Ethernet cable category 5 100BASE-T ETHERNET
Shielded RS232 cable serial link by modem
Transmission support medium
Maximum number of connected devices
Ethernet: 64 star
Serial link by modem: 2 star
Serial link by modem: 2 star
Maximum number of connected devices
Maximum cable distance between devices
100 m between terminal device and hubs by ETHERNET
Maximum cable distance between devices
Ethernet service
Inter-PLC communication in Uni-Telway or Modbus TCP/IP
Diagnostics module
Download of Uni-Telway PL7 applications
Remote terminal
Scanned inputs/outputs service performed
Adjustment, debugging and modifications to the program
Diagnostics module
Download of Uni-Telway PL7 applications
Remote terminal
Scanned inputs/outputs service performed
Adjustment, debugging and modifications to the program
Ethernet service
Supply voltage limits
19.2…30 V DC
Supply voltage limits
Input overvoltage protection
34 V
Input overvoltage protection
Power dissipation in W
2.4…4 W
Power dissipation in W
Electrical connection
1 connector mini DIN for terminal port (TER address)
1 connector RJ45 for Uni-Telway auxiliary port RS485 serial link
1 connector SUB-D 9 for RS232 serial link (Modem)
1 connector RJ45
Screw terminal block for connecting to the external power supply
1 connector RJ45 for Uni-Telway auxiliary port RS485 serial link
1 connector SUB-D 9 for RS232 serial link (Modem)
1 connector RJ45
Screw terminal block for connecting to the external power supply
Electrical connection
Local signalling
1 LED for RUN
1 LED for ERR
1 LED for RX/TX
1 LED for ERR
1 LED for RX/TX
Local signalling
Current consumption
100 mA at 24 V DC
50...200 mA at 24 V DC
50...200 mA at 24 V DC
Current consumption
Mounting support
Mounting plate
Mounting support
Width
39.83 mm
Width
Height
151.5 mm
Height
Depth
116.7 mm
Depth
Net weight
0.28 kg
Net weight
Immunity to microbreaks
1 ms
Immunity to microbreaks
Standards
UL 508
IEC 1000-4-2 level 3
IEC 1000-4-3 level 3
IEC 1000-4-4 level 3
IEC 1000-4-5
ANSI/IEEE Std 802.3 (4th edition 1993-07-08)
ISO/IEC 8802-3
IEC 61131-2
CSA C22.2
IEC 68-2-27, EA tests
EN/IEC 50082-1
IEC 1000-4-12
IEC 68-2-6, FC test
IEC 1000-4-2 level 3
IEC 1000-4-3 level 3
IEC 1000-4-4 level 3
IEC 1000-4-5
ANSI/IEEE Std 802.3 (4th edition 1993-07-08)
ISO/IEC 8802-3
IEC 61131-2
CSA C22.2
IEC 68-2-27, EA tests
EN/IEC 50082-1
IEC 1000-4-12
IEC 68-2-6, FC test
Standards
Product certifications
RINA
GOST
DNV
LR
RRS
BV
GL
GOST
DNV
LR
RRS
BV
GL
Product certifications
Marking
CE
Marking
Ambient air temperature for operation
0…60 °C conforming to IEC 61131-2
Ambient air temperature for operation
Ambient air temperature for storage
-25…70 °C conforming to IEC 61131-2
Ambient air temperature for storage
Relative humidity
5…95 % without condensation for storage conforming to IEC 61131-2
10…95 % without condensation for operation
10…95 % without condensation for operation
Relative humidity
Operating altitude
2000 m
Operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
5.5 cm
Package 1 Height
Package 1 Width
18.0 cm
Package 1 Width
Package 1 Length
26.0 cm
Package 1 Length
Package 1 Weight
657.0 g
Package 1 Weight
Warranty
18 months
Warranty
