TSXDEY16FK

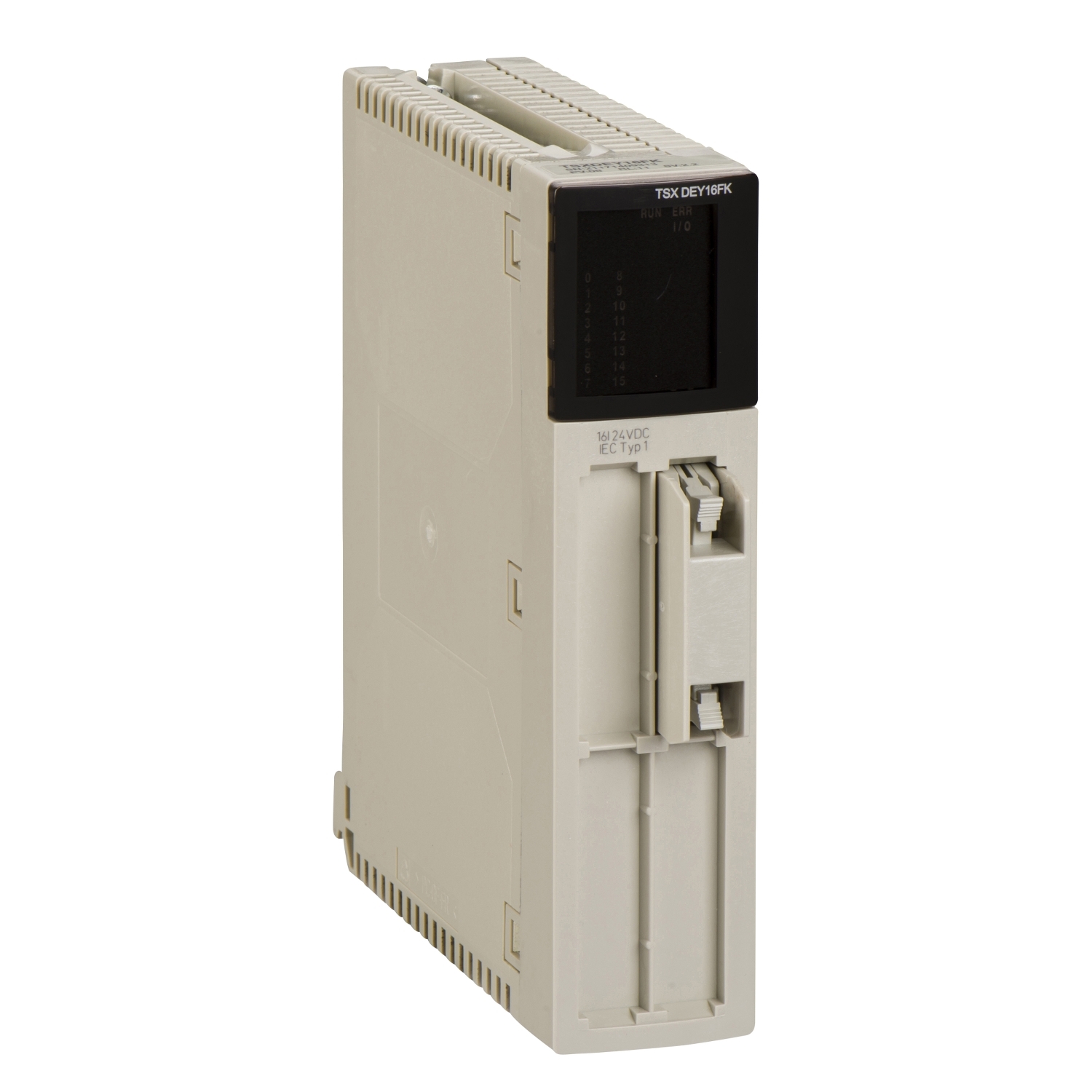

ماژول ورودی دیجیتال مدیکون Premium، 16 I 24 V DC مدل TSXDEY16FK
discrete input module Modicon Premium - 16 I 24 V DC
×
![]()
مشخصات کامل
Range of product
Modicon Premium Automation platform
Range of product
Product or component type
Discrete input module
Product or component type
Discrete input number
16 current sink isolated fast conforming to EN/IEC 61131-2 type 1
Discrete input number
Discrete input voltage
24 V DC positive
Discrete input voltage
Sensor power supply
19…30 V
Sensor power supply
Discrete input current
3.5 mA
Discrete input current
Voltage state 1 guaranteed
>= 11 V
Voltage state 1 guaranteed
Current state 1 guaranteed
>= 3 mA
Current state 1 guaranteed
Voltage state 0 guaranteed
<= 5 V
Voltage state 0 guaranteed
Current state 0 guaranteed
<= 1.5 mA
Current state 0 guaranteed
Input impedance
6300 Ohm at state 1
Input impedance
response time
0.1...7.5 ms
response time
isalotion resistance
< 10 MOhm 500 V DC
isalotion resistance
Power dissipation
(1.2 W + 0.1 W x No of channels used)
Power dissipation
Electrical connection
HE-10 connector
Electrical connection
Marking
CE
Marking
Current consumption
250 mA at 5 V DC
75 mA at 24 V DC
75 mA at 24 V DC
Current consumption
Module format
Standard
Module format
Net weight
0.3 kg
Net weight
Dielectric strength
1500 V AC at 50/60 Hz
Dielectric strength
Standards
CSA C22.2 No 213 Class I Division 2 Group A
92/31/EEC
UL 508
EN/IEC 61131-2
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D
93/68/EEC
89/336/EEC
73/23/EEC
CSA C22.2 No 142
IEC 60664
92/31/EEC
UL 508
EN/IEC 61131-2
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D
93/68/EEC
89/336/EEC
73/23/EEC
CSA C22.2 No 142
IEC 60664
Standards
Product certifications
BV
DNV
ABS
RINA
GL
LR
RMRS
DNV
ABS
RINA
GL
LR
RMRS
Product certifications
ambient air temperature for operation
0…60 °C
ambient air temperature for operation
Ambient air temperature for storage
-25…70 °C
Ambient air temperature for storage
Relative humidity
10…95 % without condensation for operation
5…95 % without condensation for storage
5…95 % without condensation for storage
Relative humidity
Operating altitude
0...2000 m
Operating altitude
Protective treatment
TC
Protective treatment
IP degree of protection
IP20
IP degree of protection
pollution degree
2
pollution degree
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
5.5 cm
Package 1 Height
Package 1 Width
18.0 cm
Package 1 Width
Package 1 Length
26.0 cm
Package 1 Length
Package 1 Weight
435.0 g
Package 1 Weight
Warranty
18 months
