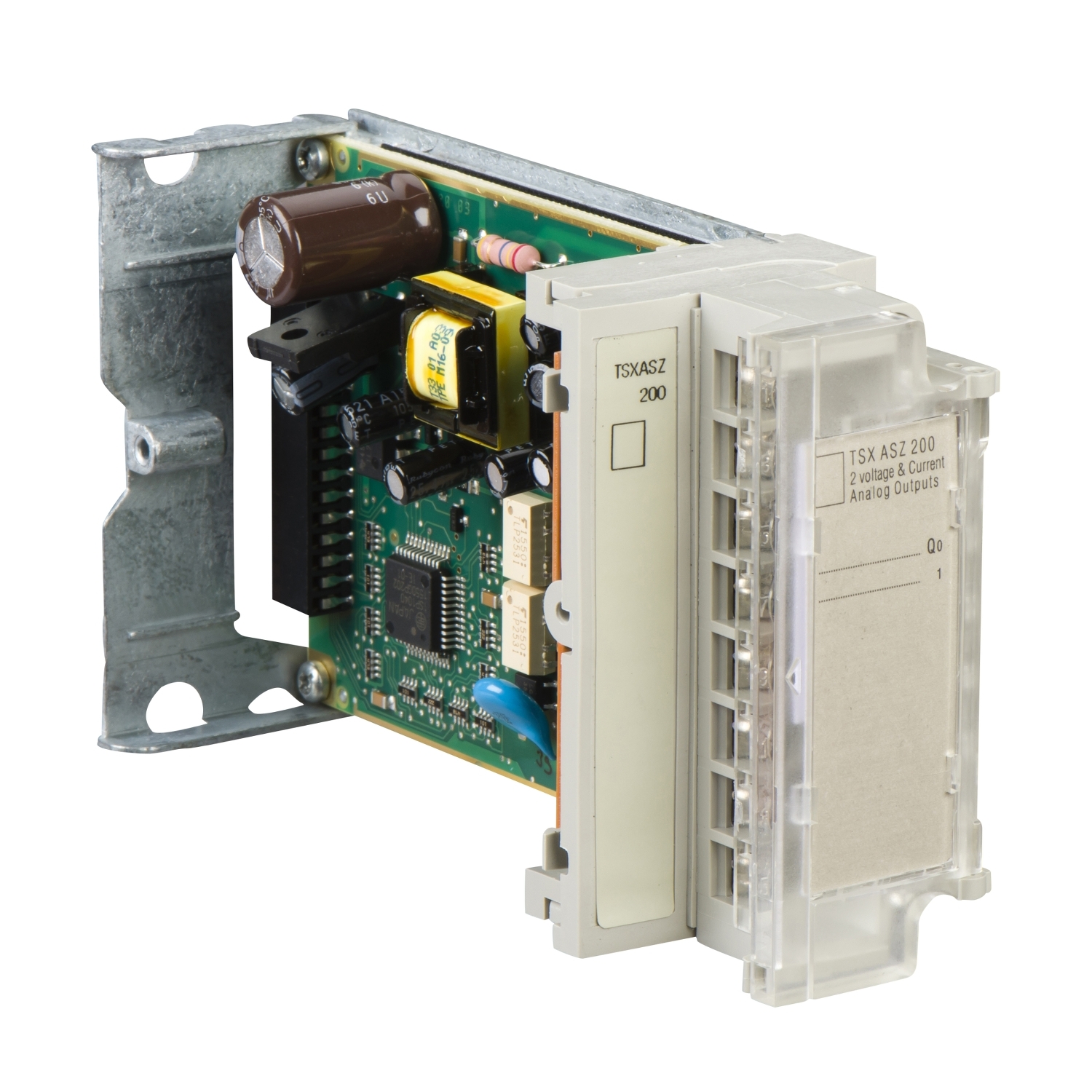

TSXASZ200
2 خروجی آنالوگ مدل TSXASZ200
TSX Micro - 2 analogue output +/- 10 V, 0-20, 4-20 mA
×
![]()
مشخصات کامل
Range of product
Modicon TSX Micro automation platform
Range of product
Product or component type
Analog output module
Product or component type
Number of channels
2
Number of channels
Analogue output type
0...20 mA or 4...20 mA
+/- 10 V
+/- 10 V
Analogue output type
Analog/digital conversion
11 bits + sign 0...20 mA or 4...20 mA
11 bits +/- 10 V
11 bits +/- 10 V
Analog/digital conversion
Measurement resolution
0...20 mA or 4...20 mA
+/- 10 V
+/- 10 V
Measurement resolution
Output load
<= 0.6 Ohm 0...20 mA or 4...20 mA
>= 1 Ohm +/- 10 V
>= 1 Ohm +/- 10 V
Output load
Protection type
Open-circuit 0...20 mA or 4...20 mA
Protection type
Temperature drift
0.107 %/10 °C 0...20 mA or 4...20 mA
0.083 %/10 °C +/- 10 V
0.083 %/10 °C +/- 10 V
Temperature drift
Current consumption
150 mA
Current consumption
Isolation voltage
1500 V AC
Isolation voltage
Net weight
0.2 kg
Net weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
5.5 cm
Package 1 Height
Package 1 Width
18.0 cm
Package 1 Width
Package 1 Length
26.0 cm
Package 1 Length
Package 1 Weight
636.0 g
Package 1 Weight
Warranty
12 months
Warranty
