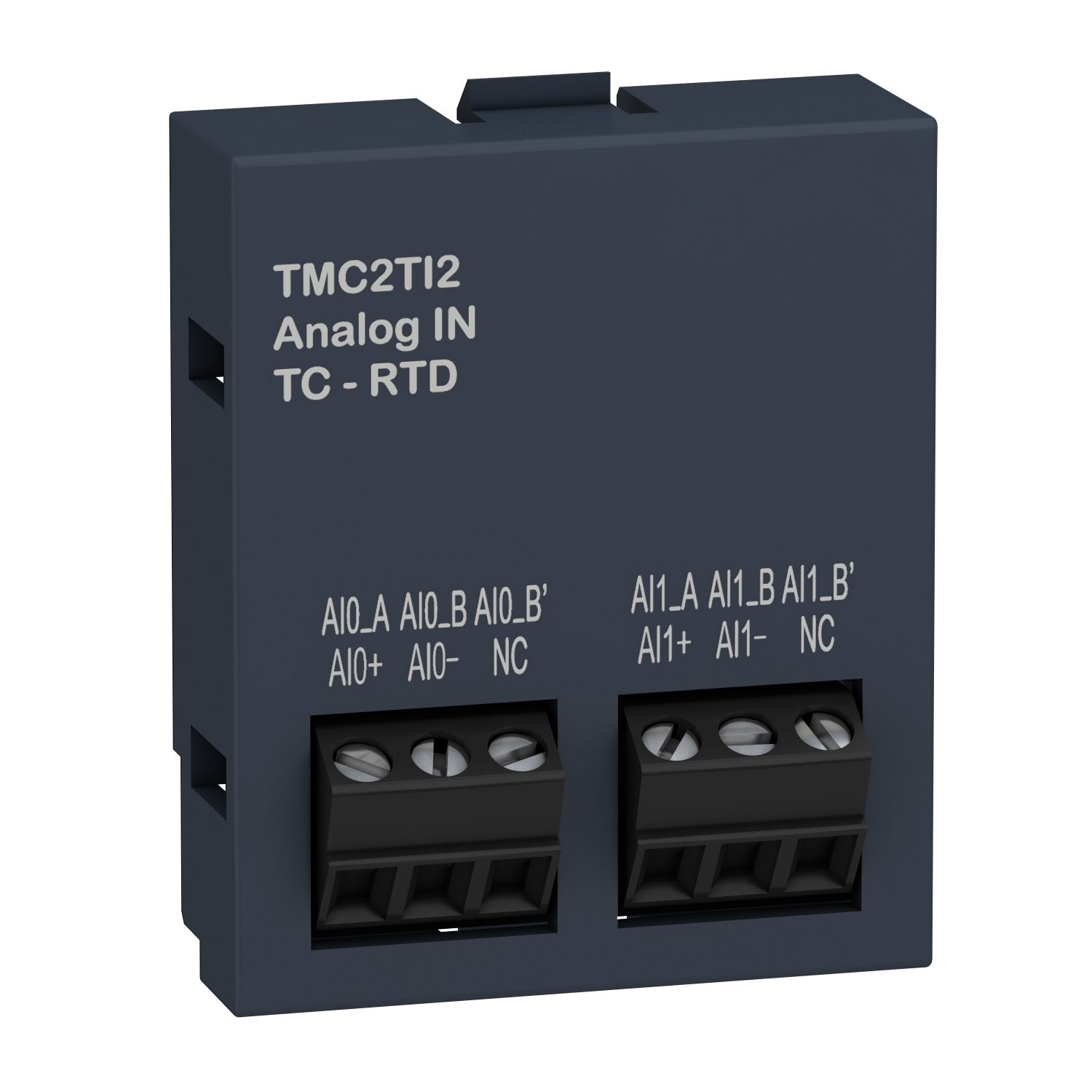

TMC2TI2
کارتریج گسترش پی ال سی TM221 اشنایدر (PLC)
cartridge M221 - 2 temperature inputs - I/O extension
×
![]()
مشخصات کامل
گروه محصول
Modicon M221
range of product
نوع محصول یا مولفه تجهیزات
Analogue input cartridge
product or component type
سازگاری محصول
Modicon M221C
product compatibility
تعداد ورودی آنالوگ
2
analogue input number
نوع ورودی آنالوگ
thermocouple - 200...1000 °C with thermocouple J thermocouple - 200...1300 °C with thermocouple K thermocouple 0...1760 °C with thermocouple R thermocouple 0...1760 °C with thermocouple S thermocouple 0...1820 °C with thermocouple B thermocouple - 200...400 °C with thermocouple T thermocouple - 200...1300 °C with thermocouple N thermocouple - 200...800 °C with thermocouple E thermocouple 0...2315 °C with thermocouple CNi 100/Ni 1000 temperature probe - 60...180 °CPt 100 temperature probe - 200...850 °CPt 1000 temperature probe - 200...600 °C
analogue input type
وضوح ورودی آنالوگ
14 bits
analogue input resolution
مقدار LSB
0.1 °C
LSB value
مدت زمان نمونه گیری
125 ms, analogue input type: thermocouple250 ms, analogue input type: temperature probe
sampling duration
خطای دقت مطلق
+/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe+/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C+/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C+/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C+/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C+/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C+/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C+/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C+/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C+/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C+/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C+/- 6 °C at 25 °C for thermocouple R, S 0...200 °C+/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C+/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C
absolute accuracy error
رانش دما
+/- 0.02 %FS/°C
temperature drift
دقت تکرار
+/- 0.5 %FS
repeat accuracy
غیر خطی بودن
+/- 0.01 %FS
non-linearity
موج گفتگو
<= 1 LSB
cross talk
نوع کابل
Twisted shielded pairs cable
type of cable
اتصال برق
3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
electrical connection
حداکثر فاصله کابل بین دستگاه ها
Twisted shielded pairs cable: <30 m for input
maximum cable distance between devices
عایق
Non-insulated between analogue input and internal logic
insulation
ارتفاع
41 mm
height
عمق
15 mm
depth
عرض
35 mm
width
وزن خالص
0.015 kg
net weight
امپدانس ورودی
>= 1 MOhm
input impedance
مصونیت در برابر شکستگی های میکرو
10 ms
immunity to microbreaks
وزن بسته 1
15.000 g
Package 1 Weight
ارتفاع بسته 1
35.000 mm
Package 1 Height
عرض بسته 1
46.000 mm
Package 1 width
طول بسته 1
70.000 mm
Package 1 Length
وضعیت پیشنهاد پایدار
Green Premium product
Sustainable offer status
مقررات REACh
REACh Declaration
REACh Regulation
بخشنامه RoHS اتحادیه اروپا
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
EU RoHS Directive
عاری از فلزات سنگین سمی
Yes
Toxic heavy metal free
بدون مرکوری
Yes
Mercury free
اطلاعات معافیت RoHS
Yes
RoHS exemption information
مقررات RoHS چین
China RoHS declaration
China RoHS Regulation
محیط زیست
Product Environmental Profile
Environmental Disclosure
مشخصات بخشنامه
End of Life Information
Circularity Profile
فاقد پی وی سی
Yes
PVC free
