TM262M15MESS8T

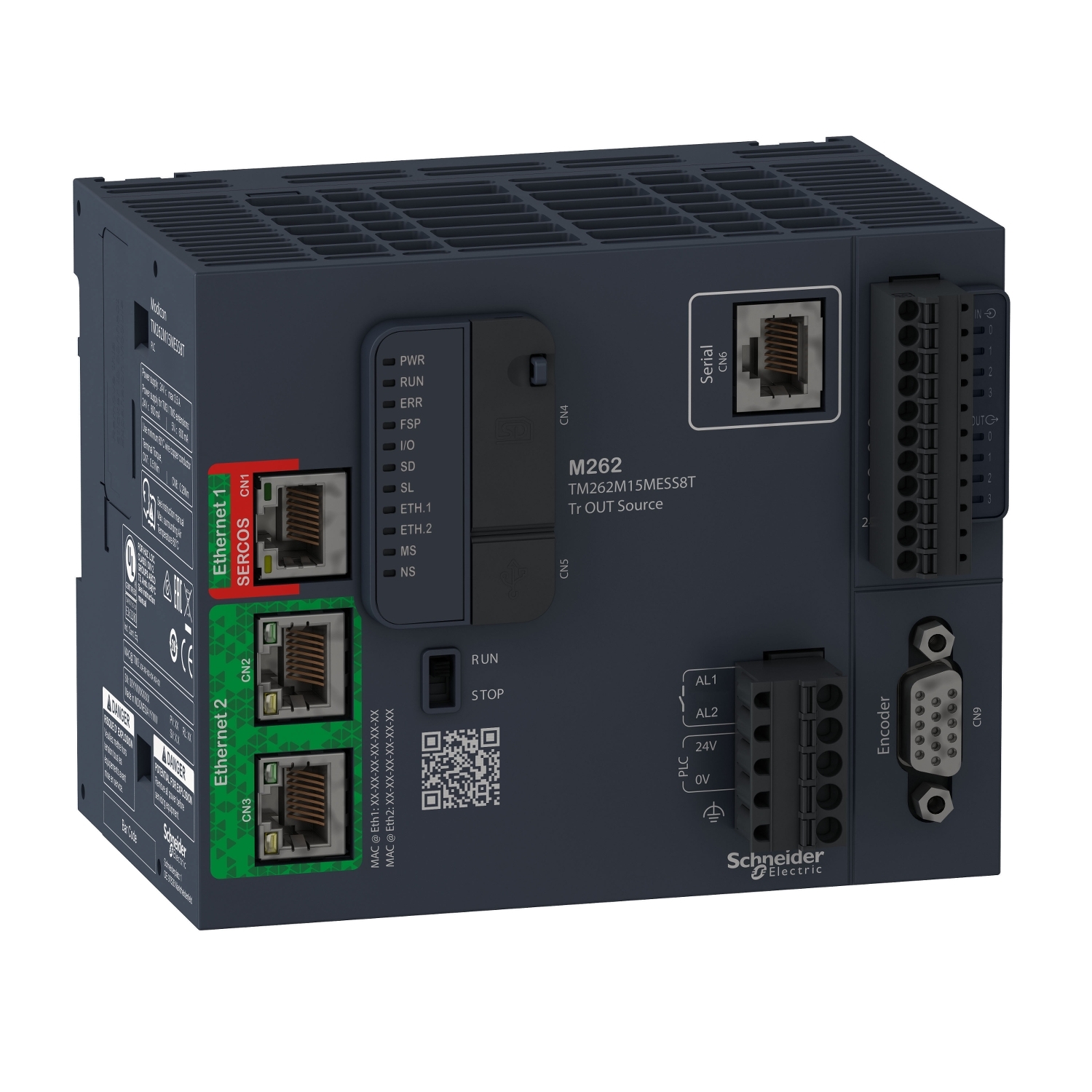

موشن کنترلر (Motion Controller) اشنایدر Schneider مدل TM262M15MESS8T
Motion Controller M262, 5ns/instruction, 4 axes, Ethernet, Sercos
×
![]()
مشخصات کامل
range of product
Logic/motion controller - Modicon M262
range of product
product or component type
Motion controller
product or component type
[Us] rated supply voltage
24 V DC - 15...20 %
[Us] rated supply voltage
تعداد ورودی دیجیتال
4, discrete input fast input conforming to IEC 61131-2 Type 1
discrete input number
نوع خروجی دیجیتال
Transistor
discrete output type
تعداد خروجی دیجیتال
4 transistor fast output
discrete output number
ولتاژ خروجی دیجیتال
24 V DC
discrete output voltage
discrete I/O number
8
discrete I/O number
communication port protocol
Ethernet IP/Modbus TCPSercos IIISerial linkModbus RTU and ASCIIHTTPHTTPS
communication port protocol
overvoltage protection
With
overvoltage protection
جریان خروجی دیجیتال
0.5 A for transistor output (Q0...Q3)0.5 A for fast output (Q0...Q3)
discrete output current
maximum number of I/O expansion module
7 (local)7 (remote)
maximum number of I/O expansion module
supply voltage limits
20.4…28.8 V DC
supply voltage limits
inrush current
40 A
inrush current
PLC Power Consumption
82 W
PLC Power Consumption
discrete input logic
Sink or source
discrete input logic
discrete input voltage
24 V
discrete input voltage
discrete input voltage type
DC
discrete input voltage type
voltage state 1 guaranteed
>= 15 V for DC
voltage state 1 guaranteed
voltage state 0 guaranteed
<= 5 V for DC
voltage state 0 guaranteed
discrete input current
7.5 mA for input7.5 mA for fast input
discrete input current
input impedance
2.81 kOhm for input
input impedance
response time
<= 1 µs turn-on, I0...I3 terminal(s) for fast input<= 1 µs turn-off, I0...I3 terminal(s) for fast input<= 1 µs turn-on, Q0...Q3 terminal(s) for fast output<= 1 µs turn-off, Q0...Q3 terminal(s) for fast output
response time
configurable filtering time
0.001 ms for fast input0.002 ms for fast input0.005 ms for fast input0.01 ms for fast input0.05 ms for fast input0.1 ms for fast input0.5 ms for fast input1 ms for fast input4 ms for fast input12 ms for fast input
configurable filtering time
discrete output logic
Source
discrete output logic
output voltage limits
30 V DC
output voltage limits
maximum current per output common
0.5 A with Q0...Q3 for fast output
maximum current per output common
accuracy
+/- 0.1 % at 0.02…0.1 kHz for fast output+/- 1 % at 0.1…1 kHz for fast output
accuracy
maximum leakage current
10 µA for output
maximum leakage current
maximum tungsten load
<1.5 W
maximum tungsten load
protection type
Short-circuit and overload protection with automatic resetReverse polarity protectionShort-circuit protection
protection type
reset time
200 ms automatic reset fast output
reset time
memory capacity
32 MB for program RAM32 MB for OS/website RAM192 MB for system memory RAM
memory capacity
data backed up
1 GB built-in flash memory for backup of user programs
data backed up
data storage equipment
<= 32 GB SDHC card (optional)
data storage equipment
backup time
1000 h at 25 °C
backup time
execution time for 1 KInstruction
0.005 ms
execution time for 1 KInstruction
application structure
8 event tasks4 cyclic master tasks3 cyclic master tasks + 1 freewheeling task8 external event tasks
application structure
realtime clock
With
realtime clock
clock drift
<= 10 s/month at 25 °C<= 10 s/month
clock drift
positioning functions
Libraries axes coordinated function Libraries axes synchronous function Sercos 3 motion bus function
positioning functions
product compatibility
External encoder 5/24 V DC no encoder power supply
product compatibility
encoder type
SSI absolute encoderIncremental encoder
encoder type
integrated connection type
USB type mini BEtherNet port1 Ethernet 1 with RJ45 connectorEtherNet port2 / switch Ethernet 2 with 2 RJ45 connectorSerial link with RJ45 connector
integrated connection type
transmission rate
115 kbit/s for bus length of 15 m for RS485115 kbit/s for bus length of 3 m for RS232115 kbit/s for RS485480 Mbit/s for bus length of 3 m for USB10/100 Mbit/s for Ethernet1115 kbit/s for RS2321 Gbit/s for Ethernet2480 Mbit/s for USB10/100 Mbit/s1 Gbit/s
transmission rate
communication service
Ethernet/IP adapterDHCP clientIEC VAR ACCESSModbus TCP clientModbus TCP serverSNMP client/serverFTP client/serverSQL clientSend and receive email from the controller based on TCP/UDP libraryWeb serverOPC UA serverDNS clientEthernet RSTPWeb visuMQTT
communication service
local signalling
1 LED (green/red) for PWR1 LED (green/red) for RUN1 LED (green/red) for ERROR (fault)1 LED (green/red) for stop forced1 LED (green/red) for I/O error (I/O)1 LED (green/orange) for Sd card activity1 LED (green/orange) for SL activity1 LED (green/red) for ETH1 state1 LED (green/red) for ETH2 state1 LED (green/red) for EIP MS1 LED (green/red) for EIP NS1 LED (green/red) for Sercos
local signalling
electrical connection
removable spring terminal block removable spring terminal blockfor connecting the 24 V DC power supply
electrical connection
maximum cable distance between devices
Shielded cable: <3 m for fast inputShielded cable: <3 m for fast outputUnshielded cable: <50 m for inputUnshielded cable: <50 m for output
maximum cable distance between devices
insulation
Between fast input and internal logic at 550 V ACNon-insulated between inputsBetween output and internal logic at 550 V ACBetween fast output and internal logic at 550 V ACNon-insulated between outputsBetween input and output at 550 V ACBetween supply and internal logic at 550 V ACNon-insulated between supply and ground
insulation
surge withstand
1 kV power lines (DC) common mode conforming to EN/IEC 61000-4-51 kV shielded cable common mode conforming to EN/IEC 61000-4-50.5 kV relay output differential mode conforming to EN/IEC 61000-4-51 kV input common mode conforming to EN/IEC 61000-4-51 kV transistor output common mode conforming to EN/IEC 61000-4-5
surge withstand
maximum number of connections
64 Ethernet/IP device64 Modbus TCP device96
maximum number of connections
mounting support
Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
mounting support
height
100 mm
height
depth
90 mm
depth
width
125 mm
width
net weight
0.67 kg
net weight
standards
UL 61010-1UL 61010-2-201CSA C22.2 No 61010-1CSA C22.2 No 61010-2-201CSA C22.2 No 213ANSI/ISA 12-12-01EN 61131-2
standards
product certifications
CECULusRCMEACAchilles
product certifications
resistance to electrostatic discharge
4 kV on contact conforming to EN/IEC 61000-4-28 kV on air conforming to EN/IEC 61000-4-2
resistance to electrostatic discharge
resistance to electromagnetic fields
10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3
resistance to electromagnetic fields
resistance to fast transients
2 kV (power lines) conforming to EN/IEC 61000-4-41 kV (Ethernet line) conforming to EN/IEC 61000-4-41 kV (serial link) conforming to EN/IEC 61000-4-41 kV (input) conforming to EN/IEC 61000-4-41 kV (transistor output) conforming to EN/IEC 61000-4-4
resistance to fast transients
resistance to conducted disturbances
10 V 0.15...80 MHz conforming to EN/IEC 61000-4-43 V 0.1...80 MHz10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
resistance to conducted disturbances
electromagnetic emission
Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011Conducted emissions - test level: 63 dB?V/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011Radiated emissions - test level: 40 dBµV/m at 30…230 kHz conforming to EN/IEC 55011Conducted emissions - test level: 79...63 dB?V/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011Radiated emissions at 230…1000 MHz conforming to EN/IEC 55011
electromagnetic emission
immunity to microbreaks
0.01 ms
immunity to microbreaks
ambient air temperature for operation
-20…60 °C (horizontal installation)-20…50 °C (vertical installation)-20…45 °C (flat mounting)
ambient air temperature for operation
ambient air temperature for storage
-40…85 °C
ambient air temperature for storage
relative humidity
10…95 %, without condensation (in operation)10…95 %, without condensation (in storage)
relative humidity
IP degree of protection
IP20
IP degree of protection
operating altitude
0...2000 m
operating altitude
storage altitude
0…3000 m
storage altitude
vibration resistance
3.5 mm at 2…8.4 Hz on symmetrical rail1 gn at 8.4…200 Hz on symmetrical rail3.5 mm at 2…8.4 Hz on panel mounting1 gn at 8.4…200 Hz on panel mounting
vibration resistance
shock resistance
15 gn for 11 ms
shock resistance
Package 1 Weight
0.600 kg
Package 1 Weight
Package 1 Height
1.000 dm
Package 1 Height
Package 1 width
0.900 dm
Package 1 width
Package 1 Length
1.250 dm
Package 1 Length
Sustainable offer status
Green Premium product
Sustainable offer status
REACh Regulation
REACh Declaration
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
EU RoHS Directive
Mercury free
Yes
Mercury free
RoHS exemption information
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
China RoHS Regulation
Environmental Disclosure
Product Environmental Profile
Environmental Disclosure
Circularity Profile
End of Life Information
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
WEEE
PVC free
Yes
PVC free
