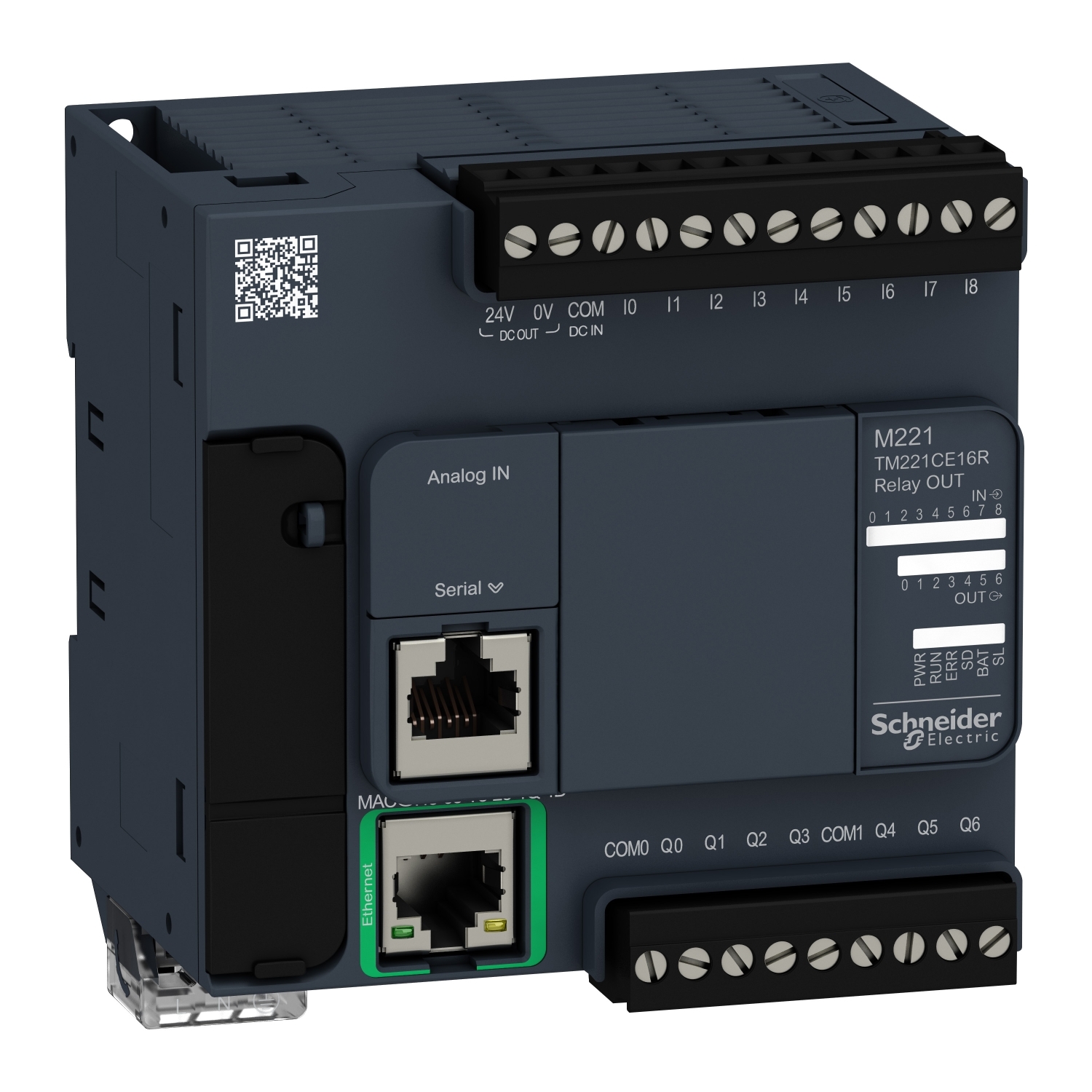

TM221CE16R
پی ال سی TM221 اشنایدر (PLC)
controller M221 16 IO relay Ethernet
×
![]()
مشخصات کامل
گروه محصول
Modicon M221
range of product
نوع محصول یا مولفه تجهیزات
Logic controller
product or component type
ولتاژ منبع تغذیه
100...240 V AC
[Us] rated supply voltage
تعداد ورودی دیجیتال
9, discrete input conforming to IEC 61131-2 Type 1
discrete input number
تعداد ورودی آنالوگ
2 at 0...10 V
analogue input number
نوع خروجی دیجیتال
Relay normally open
discrete output type
تعداد خروجی دیجیتال
7 relay
discrete output number
ولتاژ خروجی دیجیتال
5...125 V DC5...250 V AC
discrete output voltage
جریان خروجی دیجیتال
2 A
discrete output current
شماره I / O گسسته
16
discrete I/O number
حداکثر تعداد ماژول توسعه ورودی / خروجی
4 for transistor output4 for relay output
maximum number of I/O expansion module
محدوده ساپورت ولتاژ
85…264 V
supply voltage limits
فرکانس شبکه
50/60 Hz
network frequency
جریان هجومی
40 A
inrush current
حداکثر مصرف برق در VA
49 VA at 100...240 V with max number of I/O expansion module33 VA at 100...240 V without I/O expansion module
maximum power consumption in VA
جریان خروجی منبع تغذیه
0.325 A 5 V for expansion bus0.12 A 24 V for expansion bus
power supply output current
منطق ورودی گسسته
Sink or source (positive/negative)
discrete input logic
ولتاژ ورودی گسسته
24 V
discrete input voltage
نوع ولتاژ ورودی گسسته
DC
discrete input voltage type
وضوح ورودی آنالوگ
10 bits
analogue input resolution
مقدار LSB
10 mV
LSB value
زمان تبدیل
1 ms per channel + 1 controller cycle time for analogue input analog input
conversion time
اضافه بار مجاز در ورودی ها
+/- 30 V DC for 5 min (maximum) for analog input+/- 13 V DC (permanent) for analog input
permitted overload on inputs
ولتاژ 1 تضمین شده
>= 15 V for input
voltage state 1 guaranteed
ولتاژ 0 تضمین شده
<= 5 V for input
voltage state 0 guaranteed
جریان ورودی گسسته
7 mA for discrete input5 mA for fast input
discrete input current
امپدانس ورودی
3.4 kOhm for discrete input100 kOhm for analog input4.9 kOhm for fast input
input impedance
زمان پاسخ
35 µs turn-off, I2...I5 terminal(s) for input10 ms turn-on for output10 ms turn-off for output5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input35 µs turn-on, other terminals terminal(s) for input5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input100 µs turn-off, other terminals terminal(s) for input
response time
زمان فیلتر کردن با قابلیت تنظیم
0 ms for input3 ms for input12 ms for input
configurable filtering time
محدودیت ولتاژ خروجی
125 V DC277 V AC
output voltage limits
حداکثر جریان در هر خروجی مشترک
6 A at COM 17 A at COM 0
maximum current per output common
خطای دقت مطلق
+/- 1 % of full scale for analog input
absolute accuracy error
دوام الکتریکی
100000 cycles AC-12, 120 V, 240 VA, resistive100000 cycles AC-12, 240 V, 480 VA, resistive300000 cycles AC-12, 120 V, 80 VA, resistive300000 cycles AC-12, 240 V, 160 VA, resistive100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive100000 cycles DC-12, 24 V, 48 W, resistive300000 cycles DC-12, 24 V, 16 W, resistive100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
electrical durability
فرکانس سوئیچینگ
20 switching operations/minute with maximum load
switching frequency
دوام مکانیکی
20000000 cycles for relay output
mechanical durability
حداقل بار
1 mA at 5 V DC for relay output
minimum load
نوع محافظت
Without protection at 5 A
protection type
زمان تنظیم مجدد
1 s
reset time
ظرفیت حافظه
256 kB for user application and data RAM with 10000 instructions256 kB for internal variables RAM
memory capacity
اطلاعات پشتیبان
256 kB built-in flash memory for backup of application and data
data backed up
تجهیزات ذخیره اطلاعات
2 GB SD card (optional)
data storage equipment
نوع باتری
BR2032 lithium non-rechargeable, battery life: 4 year(s)
battery type
زمان پشتیبان گیری
1 year at 25 °C (by interruption of power supply)
backup time
زمان اجرا برای 1 KInstruction
0.3 ms for event and periodic task
execution time for 1 KInstruction
زمان اجرا در هر دستورالعمل
0.2 µs Boolean
execution time per instruction
زمان اضافی برای کار رویداد
60 µs response time
exct time for event task
بیشترین سایز
255 %C counters512 %KW constant words255 %TM timers512 %M memory bits8000 %MW memory words
maximum size of object areas
ساعت واقعی
With
realtime clock
رانش ساعت
<= 30 s/month at 25 °C
clock drift
حلقه تنظیم
Adjustable PID regulator up to 14 simultaneous loops
regulation loop
شمارش شماره ورودی
4 fast input (HSC mode) at 100 kHz 32 bits
counting input number
عملکرد شمارنده
Pulse/directionA/BSingle phase
counter function
نوع اتصال یکپارچه
USB port with mini B USB 2.0 connectorNon isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface Ethernet with RJ45 connector
integrated connection type
ساپورت
(serial)serial link supply: 5 V, <200 mA
supply
نرخ انتقال
1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS4851.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232480 Mbit/s for USB
transmission rate
پروتکل پورت ارتباطی
USB port: USB - SoMachine-NetworkNon isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-NetworkEthernet
communication port protocol
پورت اترنت
10BASE-T/100BASE-TX 1 port with 100 m copper cable
port Ethernet
سرویس ارتباطی
DHCP clientEthernet/IP adapterModbus TCP serverModbus TCP slave deviceModbus TCP client
communication service
سیگنالینگ محلی
1 LED (green) for PWR1 LED (green) for RUN1 LED (red) for module error (ERR)1 LED (green) for SD card access (SD)1 LED (red) for BAT1 LED per channel (green) for I/O state1 LED (green) for SLEthernet network activity (green) for ACTEthernet network link (yellow) for Link (Link Status)
local signalling
اتصال برق
removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputsMini B USB 2.0 connector for a programming terminal
electrical connection
حداکثر فاصله کابل بین دستگاه ها
Shielded cable: <10 m for fast inputUnshielded cable: <30 m for outputUnshielded cable: <30 m for digital inputUnshielded cable: <1 m for analog input
maximum cable distance between devices
عایق
Between input and internal logic at 500 V ACNon-insulated between analogue input and internal logicNon-insulated between analogue inputsBetween supply and ground at 1500 V ACBetween sensor power supply and ground at 500 V ACBetween input and ground at 500 V ACBetween output and ground at 1500 V ACBetween supply and internal logic at 2300 V ACBetween sensor power supply and internal logic at 500 V ACBetween output and internal logic at 2300 V ACBetween Ethernet terminal and internal logic at 500 V ACBetween supply and sensor power supply at 2300 V AC
insulation
علامت گذاری
CE
marking
سنسور منبع تغذیه
24 V DC at 250 mA supplied by the controller
sensor power supply
پشتیبانی نصب
Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
mounting support
ارتفاع
90 mm
height
عمق
70 mm
depth
عرض
95 mm
width
وزن خالص
0.346 kg
net weight
استانداردها
EN/IEC 61010-2-201EN/IEC 60664-1EN/IEC 61131-2
standards
گواهینامه های محصول
CSACULusLRRCMIACS E10EACABSDNV-GL
product certifications
ویژگی محیطی
Ordinary and hazardous location
environmental characteristic
مقاومت در برابر تخلیه الکترواستاتیک
8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2
resistance to electrostatic discharge
مقاومت در برابر میدانهای الکترومغناطیسی
10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
resistance to electromagnetic fields
مقاومت در برابر میدان های مغناطیسی
30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
resistance to magnetic fields
مقاومت در برابر گذرا های سریع
2 kV (power lines) conforming to EN/IEC 61000-4-42 kV (relay output) conforming to EN/IEC 61000-4-41 kV (I/O) conforming to EN/IEC 61000-4-41 kV (Ethernet line) conforming to EN/IEC 61000-4-41 kV (serial link) conforming to EN/IEC 61000-4-4
resistance to fast transients
مقاومت در برابر صاعقه
2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-52 kV relay output common mode conforming to EN/IEC 61000-4-51 kV I/O common mode conforming to EN/IEC 61000-4-51 kV shielded cable common mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-51 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-51 kV relay output differential mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5
surge withstand
مقاومت در برابر اغتشاشات انجام شده
10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
resistance to conducted disturbances
انتشار الکترومغناطیسی
Conducted emissions - test level: 79 dB?V/m QP/66 dB?V/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to EN/IEC 55011Conducted emissions - test level: 73 dB?V/m QP/60 dB?V/m AV ( power lines (AC)) at 0.5…300 MHz conforming to EN/IEC 55011Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011Conducted emissions - test level: 63 dB?V/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011Conducted emissions - test level: 79...63 dB?V/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 200…1000 MHz conforming to EN/IEC 55011
electromagnetic emission
مصونیت در برابر شکستگی های میکرو
10 ms
immunity to microbreaks
دمای هوای محیط برای کار
-10…55 °C (horizontal installation)-10…35 °C (vertical installation)
ambient air temperature for operation
دمای هوای محیط برای ذخیره سازی
-25…70 °C
ambient air temperature for storage
رطوبت نسبی
10…95 %, without condensation (in operation)10…95 %, without condensation (in storage)
relative humidity
درجه IP محافظت
IP20 with protective cover in place
IP degree of protection
درجه آلودگی
<= 2
pollution degree
ارتفاع عملیاتی
0...2000 m
operating altitude
ارتفاع ذخیره سازی
0…3000 m
storage altitude
مقاومت در برابر لرزش
3.5 mm at 5…8.4 Hz on symmetrical rail3.5 mm at 5…8.4 Hz on panel mounting1 gn at 8.4…150 Hz on symmetrical rail1 gn at 8.4…150 Hz on panel mounting
vibration resistance
مقاومت در برابر ضربه
98 m/s² for 11 ms
shock resistance
وزن بسته 1
300.000 g
Package 1 Weight
ارتفاع بسته 1
106.000 mm
Package 1 Height
عرض بسته 1
139.000 mm
Package 1 width
طول بسته 1
140.000 mm
Package 1 Length
وضعیت پیشنهاد پایدار
Green Premium product
Sustainable offer status
مقررات REACh
REACh Declaration
REACh Regulation
بخشنامه RoHS اتحادیه اروپا
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
EU RoHS Directive
بدون مرکوری
Yes
Mercury free
اطلاعات معافیت RoHS
Yes
RoHS exemption information
مقررات RoHS چین
China RoHS declaration
China RoHS Regulation
محیط زیست
Product Environmental Profile
Environmental Disclosure
مشخصات بخشنامه
End of Life Information
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
WEEE
فاقد پی وی سی
Yes
PVC free
پین
0 V
Pin
رنگ سیم
Black
Wire Color
Pin N°
AN1
Pin N°
علامت
Red
Signal
N °
0 V
N °
RS 232
Black
RS 232
RS 485
AN0
RS 485
Red
1
TD+
2
TD-
3
RD+
4
-
5
-
6
RD-
7
-
8
-
1
RxD
N.C.
2
TxD
N.C.
3
RTS
N.C.
4
N.C.
D1 (A+)
5
N.C.
D0 (B–)
6
CTS
N.C.
7
N.C.
5 Vdc
8
Common
Common
