HMIS65
صفحه نمایش لمسی کوچک HMI، هارمونی SCU، ماژول جلو 3 در 5 نور پس زمینه LED رنگی TFT LCD

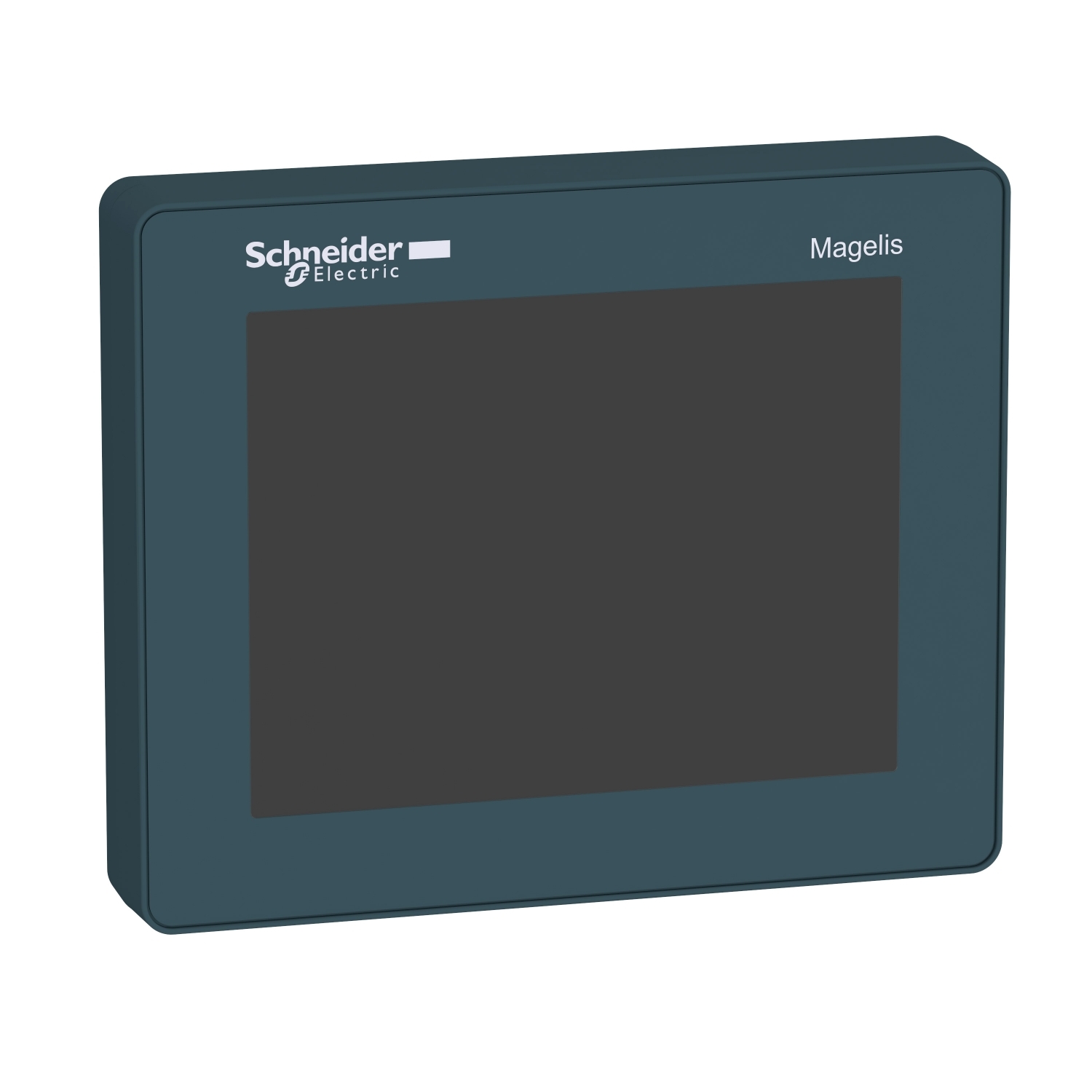

Small touchscreen display HMI, Harmony SCU, 3in5 front module Backlight LED Color TFT LCD
×
![]()
مشخصات کامل
Range of Product
Harmony SCU
Range of Product
Product or Component Type
Small touchscreen display HMI
Product or Component Type
Display size
3.5 inch
Display size
Pixel resolution
320 x 240 pixels QVGA
Pixel resolution
Display type
Backlit LED colour TFT LCD
Display type
Touch panel
Analogue
Touch panel
Backlight lifespan
50000 hours 65536 colours
Backlight lifespan
Brightness
16 levels via touch panel
Brightness
View angle horiz x vert
60° left
60° right
40° top
60° bottom
60° right
40° top
60° bottom
View angle horiz x vert
Character font
Korean
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII
Taiwanese (traditional Chinese)
Chinese (simplified Chinese)
Japanese (ANK, Kanji)
ASCII
Taiwanese (traditional Chinese)
Character font
Width
3.8 in (97.6 mm)
Width
Depth
3.1 in (80 mm)
Depth
Product Weight
1.17 lb(US) (0.53 kg)
Product Weight
Product Certifications
UKCA
UKEX
UKEX
Product Certifications
Category
US10MC222569
Category
Discount Schedule
0MC2
Discount Schedule
GTIN
3595864149042
GTIN
Returnability
No
Returnability
Country of origin
CN
Country of origin
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
5.04 in (12.8 cm)
Package 1 Height
Package 1 Width
2.09 in (5.3 cm)
Package 1 Width
Package 1 Length
7.20 in (18.3 cm)
Package 1 Length
Package 1 Weight
10.7 oz (304.0 g)
Package 1 Weight
Unit Type of Package 2
S03
Unit Type of Package 2
Number of Units in Package 2
16
Number of Units in Package 2
Package 2 Height
11.81 in (30.0 cm)
Package 2 Height
Package 2 Width
11.81 in (30.0 cm)
Package 2 Width
Package 2 Length
15.75 in (40.0 cm)
Package 2 Length
Package 2 Weight
11.859 lb(US) (5.379 kg)
Package 2 Weight
Unit Type of Package 3
P12
Unit Type of Package 3
Number of Units in Package 3
256
Number of Units in Package 3
Package 3 Height
23.62 in (60.0 cm)
Package 3 Height
Package 3 Width
31.50 in (80.0 cm)
Package 3 Width
Package 3 Length
47.24 in (120.0 cm)
Package 3 Length
Package 3 Weight
171.573 lb(US) (77.824 kg)
Package 3 Weight
Warranty
18 months
Warranty
