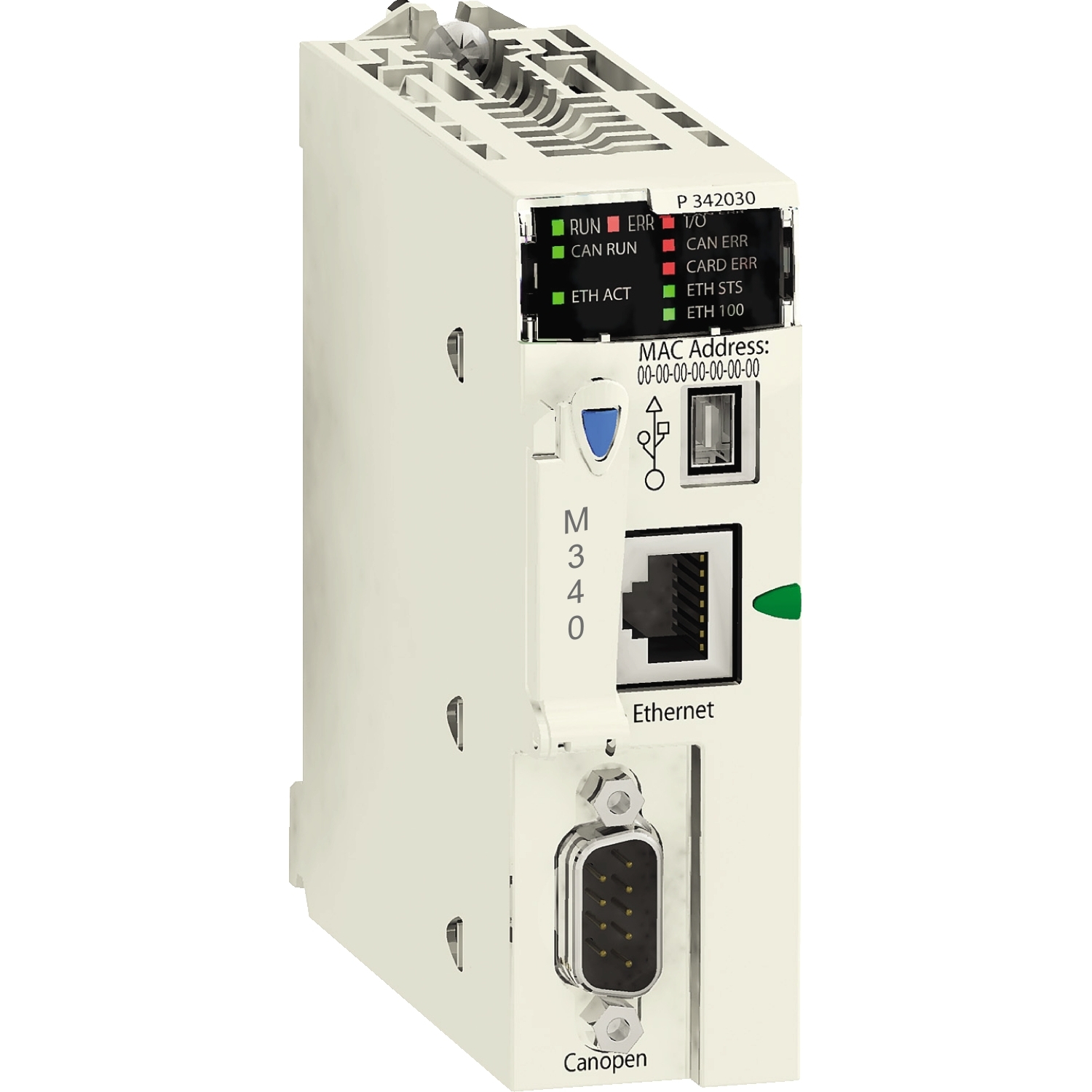

BMXP3420302
سی پی یو M340 با امکان گسترش 1024 ماژول - مدباس - کن اوپن - 256 ورودی و خروجی آنالوگ
processor module M340 - max 1024 discrete + 256 analog I/O - CANOpen
×
![]()
مشخصات کامل
گروه محصول
Modicon M340 automation platform
range of product
نوع محصول یا مولفه تجهیزات
Processor module
product or component type
مفهوم
CANopenTransparent Ready
concept
تعداد رک ها
4
number of racks
تعداد اسلات
11
number of slots
ظرفیت پردازنده گسسته I / O
1024 I/O multi-rack configuration704 I/O single-rack configuration
discrete I/O processor capacity
ظرفیت پردازنده ورودی / خروجی آنالوگ
256 I/O multi-rack configuration66 I/O single-rack configuration
analogue I/O processor capacity
تعداد کانال خاص برنامه
36
number of application specific channel
کنترل کانالها
Programmable loops
control channels
کوشن کنترل
Independent axis CANopen
motion control
نوع اتصال یکپارچه
USB port at 12 Mbit/sCANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/sEthernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s
integrated connection type
ظرفیت پردازنده ماژول ارتباطی
2 Ethernet communication module4 AS-Interface module
communication module processor capacity
حالت انتقال
Network management (NMT) CANopenProcess Data Object (PDO) CANopenService Data Object (SDO) CANopenSpecial functions (SYNC, EMCY, TIME) CANopenBandwidth management, Ethernet TCP/IPData Editor, Ethernet TCP/IPModbus TCP messaging, Ethernet TCP/IPRack Viewer, Ethernet TCP/IPSNMP network administrator, Ethernet TCP/IP
embedded communication service
پورت اترنت
10BASE-T/100BASE-TX
port Ethernet
نرخ انتقال
1 Mbit/s 0…20 m 0…0.6 m125 kbit/s 0…500 m 0…10 m20 kbit/s 0…2500 m 0…300 m250 kbit/s 0…250 m 0…10 m50 kbit/s 0…1000 m 0…120 m500 kbit/s 0…100 m 0…10 m800 kbit/s 0…40 m 0…6 m
transmission rate
نوع باس
CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CACANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CACANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA
bus type
تعداد پیرو
63 CANopen
number of slave
تعداد دستگاهها در هر بخش
0…16 for <205 m (CANopen)0…32 for <185 m (CANopen)0…64 for <160 m (CANopen)
number of devices per segment
شرح حافظه
Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and dataInternal RAM 4096 kBInternal RAM 256 kB dataInternal RAM 3584 kB program constants and symbolsSupplied memory card (BMXRMS008MP) activation of standard web server, class B10
memory description
بیشترین سایز
256 kB unlocated internal data32634 %Mi located internal bits
maximum size of object areas
اندازه پیش فرض مناطق شی
1024 %MWi internal words located internal data256 %KWi constant words located internal data512 %Mi located internal bits
default size of object areas
ساختار برنامه
1 cyclic/periodic master task1 periodic fast taskNo auxiliary task64 event tasks
application structure
زمان اجرا در هر دستورالعمل
0.12 µs Boolean0.17 µs double-length words0.25 µs single-length words1.16 µs floating points
execution time per instruction
تعداد دستورالعمل ها در هر میلی ثانیه
6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic8.1 Kinst/ms 100 % Boolean
number of instructions per ms
سیستم سربار
0.13 ms for fast task0.7 ms for master task
system overhead
جریان فعلی
135 mA at 24 V DC
current consumption
ساپورت
Internal power supply via rack
supply
علامت گذاری
CE
marking
LED وضعیت
1 LED (green)activity on Ethernet network (ETH ACT)1 LED (green)integrated machine/installation bus operational (CAN RUN)1 LED (green)processor running (RUN)1 LED (green)status of Ethernet network (ETH STS)1 LED (red)data rate (ETH 100)1 LED (red)I/O module fault (I/O)1 LED (red)integrated machine/installation bus fault (CAN ERR)1 LED (red)memory card fault (CARD ERR)1 LED (red)processor or system fault (ERR)1 LED (yellow)activity on Modbus (SER COM)
status LED
وزن خالص
0.215 kg
net weight
دمای هوای محیط برای کار
0…60 °C
ambient air temperature for operation
رطوبت نسبی
10…95 % without condensation
relative humidity
درجه IP محافظت
IP20
IP degree of protection
قالب ماژول
TC
protective treatment
بخشنامه ها
2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility2012/19/EU - WEEE directive
directives
گواهینامه های محصول
CEULCSARCMEACMerchant Navy
product certifications
استانداردها
EN 61131-2EN/IEC 61010-2-201UL 61010-2-201CSA C22.2 No 61010-2-201IACS E10EN/IEC 61000-6-5, interface type 1 and type 2EN/IEC 61850-3, location G
standards
ویژگی محیطی
Hazardous location class I division 2
environmental characteristic
نوع واحد بسته بندی 1
PCE
Unit Type of Package 1
تعداد واحدهای موجود در بسته 1
1
Number of Units in Package 1
وزن بسته 1
246 g
Package 1 Weight
ارتفاع بسته 1
5.5 cm
Package 1 Height
عرض بسته 1
11 cm
Package 1 width
طول بسته 1
11.5 cm
Package 1 Length
وزن 2 بسته
4.116 kg
Package 2 Weight
وضعیت پیشنهاد پایدار
Green Premium product
Sustainable offer status
مقررات REACh
REACh Declaration
REACh Regulation
REACh فاقد SVHC
Yes
REACh free of SVHC
بخشنامه RoHS اتحادیه اروپا
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
EU RoHS Directive
بدون مرکوری
Yes
Mercury free
اطلاعات معافیت RoHS
Yes
RoHS exemption information
مقررات RoHS چین
China RoHS declaration
China RoHS Regulation
محیط زیست
Product Environmental Profile
Environmental Disclosure
مشخصات بخشنامه
End of Life Information
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
WEEE
ضمانتنامه
18 months
Warranty
منابع رک
BMXXBP0400 and BMXXBP0400H
Rack references
a در میلی متر
242.4
a in mm
در اینچ
09.54
a in in.
BMXXBP0600 and BMXXBP0600H
307.6
12.11
BMXXBP0800 and BMXXBP0800H
372.8
14.68
BMXXBP1200 and BMXXBP1200H
503.2
19.81
