BMXP341000

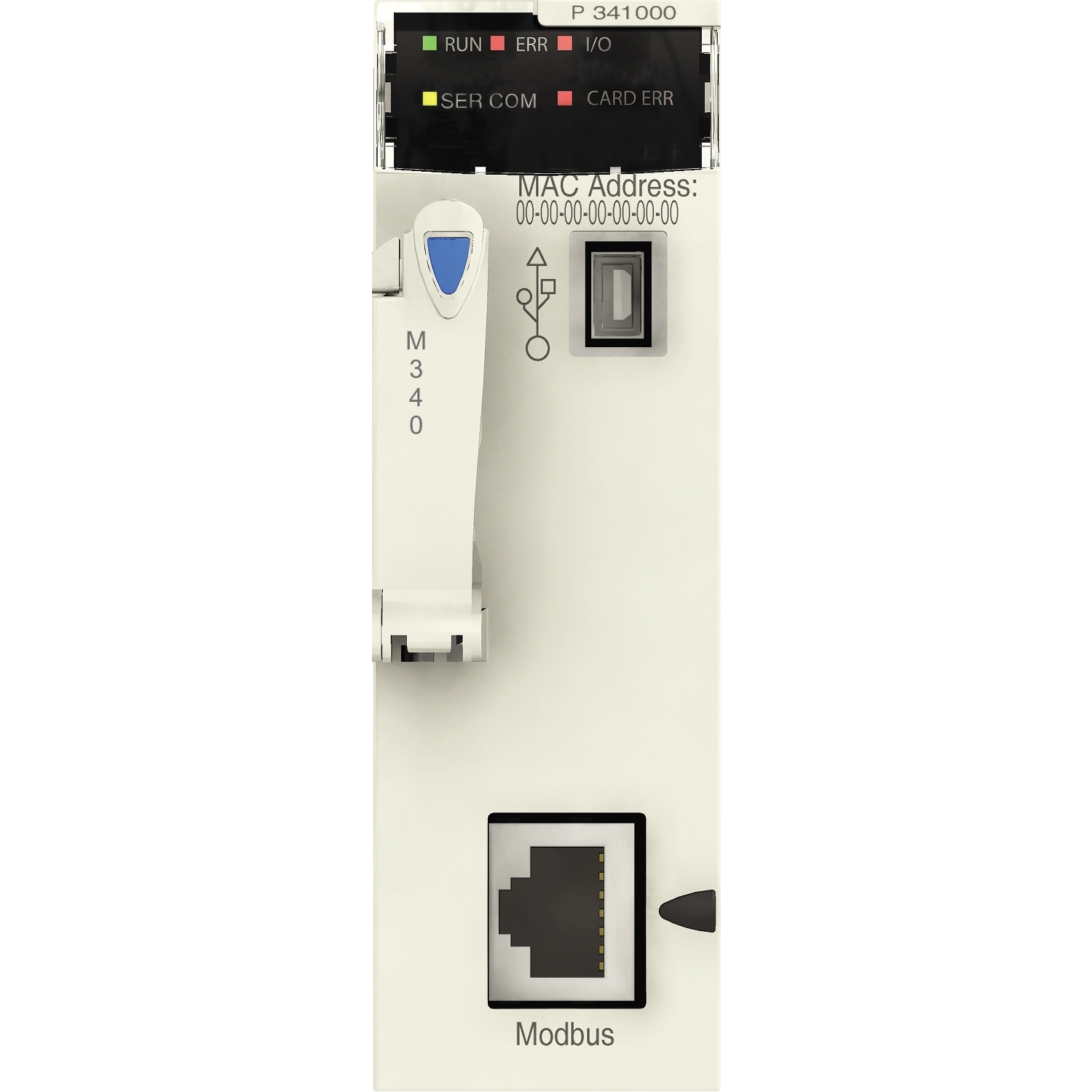

سی پی یو M340 با امکان گسترش 512 ماژول - مدباس - 128 ورودی و خروجی آنالوگ
processor module M340 - max 512 discrete + 128 analog I/O - Modbus
×
![]()
مشخصات کامل
گروه محصول
Modicon M340 automation platform
range of product
نوع محصول یا مولفه تجهیزات
Processor module
product or component type
تعداد رک ها
2
number of racks
تعداد اسلات
11
number of slots
ظرفیت پردازنده گسسته I / O
512 I/O single-rack configuration
discrete I/O processor capacity
ظرفیت پردازنده ورودی / خروجی آنالوگ
66 I/O single-rack configuration128 I/O multi-rack configuration
analogue I/O processor capacity
تعداد کانال خاص برنامه
20
number of application specific channel
مانیتورینگ
Diagnostic counters ModbusEvent counters Modbus
monitoring
کنترل کانالها
Programmable loops
control channels
نوع اتصال یکپارچه
Non isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS232C, transmission mode: 2 twisted shielded pairs at 0.3...19.2 kbit/s full duplexNon isolated serial link RJ45 character mode, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplexNon isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS232C, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplexNon isolated serial link RJ45, master/slave Modbus, RTU/ASCII, transmission mode: asynchronous in baseband, RS485, transmission mode: 1 twisted shielded pair at 0.3...19.2 kbit/s half duplexUSB port at 12 Mbit/s
integrated connection type
ظرفیت پردازنده ماژول ارتباطی
2 Ethernet communication module2 AS-Interface module
communication module processor capacity
تعداد دستگاهها در هر بخش
0…32 (character mode)0…32 (Modbus)
number of devices per segment
تعداد دستگاهها
2 point-to-point character mode2 point-to-point Modbus
number of devices
طول باس
0…10 m serial link non isolated character mode segment0…10 m serial link non isolated Modbus segment0…1000 m serial link isolated character mode segment0…1000 m serial link isolated Modbus segment0…15 m character mode point-to-point0…15 m Modbus point-to-point
bus length
حداکثر طول لینکها
<15 m serial link non isolated character mode segment <15 m serial link non isolated Modbus segment <40 m serial link isolated character mode segment <40 m serial link isolated Modbus segment
maximum tap links length
تعداد آدرسها
0…248 for character mode0…248 for Modbus
number of addresses
درخواست ها
1 K data bytes per request character mode252 data bytes per RTU request Modbus504 data bytes per ASCII request Modbus
requests
پارامتر کنترل
One CRC on each frame (RTU) ModbusOne LRC on each frame (ASCII) character modeOne LRC on each frame (ASCII) Modbus
control parameter
شرح حافظه
Internal RAM 2048 kBInternal RAM 128 kB dataInternal RAM 1792 kB program constants and symbolsSupplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
memory description
بیشترین سایز
128 kB unlocated internal data16250 %Mi located internal bits32464 %MWi internal words located internal data32760 %KWi constant words located internal data
maximum size of object areas
اندازه پیش فرض مناطق شی
128 %KWi constant words located internal data256 %Mi located internal bits512 %MWi internal words located internal data
default size of object areas
ساختار برنامه
1 periodic fast task32 event tasks1 cyclic/periodic master taskNo auxiliary task
application structure
زمان اجرا در هر دستورالعمل
0.18 µs Boolean0.26 µs double-length words0.38 µs single-length words1.74 µs floating points
execution time per instruction
تعداد دستورالعمل ها در هر میلی ثانیه
4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic5.4 Kinst/ms 100 % Boolean
number of instructions per ms
سیستم سربار
0.2 ms for fast task1.05 ms for master task
system overhead
جریان فعلی
72 mA at 24 V DC
current consumption
ساپورت
Internal power supply via rack
supply
علامت گذاری
CE
marking
LED وضعیت
1 LED (green)processor running (RUN)1 LED (red)I/O module fault (I/O)1 LED (red)memory card fault (CARD ERR)1 LED (red)processor or system fault (ERR)1 LED (yellow)activity on Modbus (SER COM)
status LED
وزن خالص
0.2 kg
net weight
دمای هوای محیط برای کار
0…60 °C
ambient air temperature for operation
رطوبت نسبی
10…95 % without condensation
relative humidity
درجه IP محافظت
IP20
IP degree of protection
قالب ماژول
TC
protective treatment
بخشنامه ها
2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility2012/19/EU - WEEE directive
directives
گواهینامه های محصول
CEULCSARCMEACMerchant Navy
product certifications
استانداردها
EN 61131-2EN/IEC 61010-2-201UL 61010-2-201CSA C22.2 No 61010-2-201IACS E10EN/IEC 61000-6-5, interface type 1 and type 2EN/IEC 61850-3, location G
standards
ویژگی محیطی
Hazardous location class I division 2
environmental characteristic
نوع واحد بسته بندی 1
PCE
Unit Type of Package 1
تعداد واحدهای موجود در بسته 1
1
Number of Units in Package 1
وزن بسته 1
237 g
Package 1 Weight
ارتفاع بسته 1
5.5 cm
Package 1 Height
عرض بسته 1
11 cm
Package 1 width
طول بسته 1
11.5 cm
Package 1 Length
وزن 2 بسته
3.981 kg
Package 2 Weight
وضعیت پیشنهاد پایدار
Green Premium product
Sustainable offer status
مقررات REACh
REACh Declaration
REACh Regulation
REACh فاقد SVHC
Yes
REACh free of SVHC
بخشنامه RoHS اتحادیه اروپا
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
EU RoHS Directive
بدون مرکوری
Yes
Mercury free
اطلاعات معافیت RoHS
Yes
RoHS exemption information
مقررات RoHS چین
China RoHS declaration
China RoHS Regulation
محیط زیست
Product Environmental Profile
Environmental Disclosure
مشخصات بخشنامه
End of Life Information
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
WEEE
ضمانتنامه
18 months
Warranty
منابع رک
BMXXBP0400 and BMXXBP0400H
Rack references
a در میلی متر
242.4
a in mm
در اینچ
09.54
a in in.
BMXXBP0600 and BMXXBP0600H
307.6
12.11
BMXXBP0800 and BMXXBP0800H
372.8
14.68
BMXXBP1200 and BMXXBP1200H
503.2
19.81
