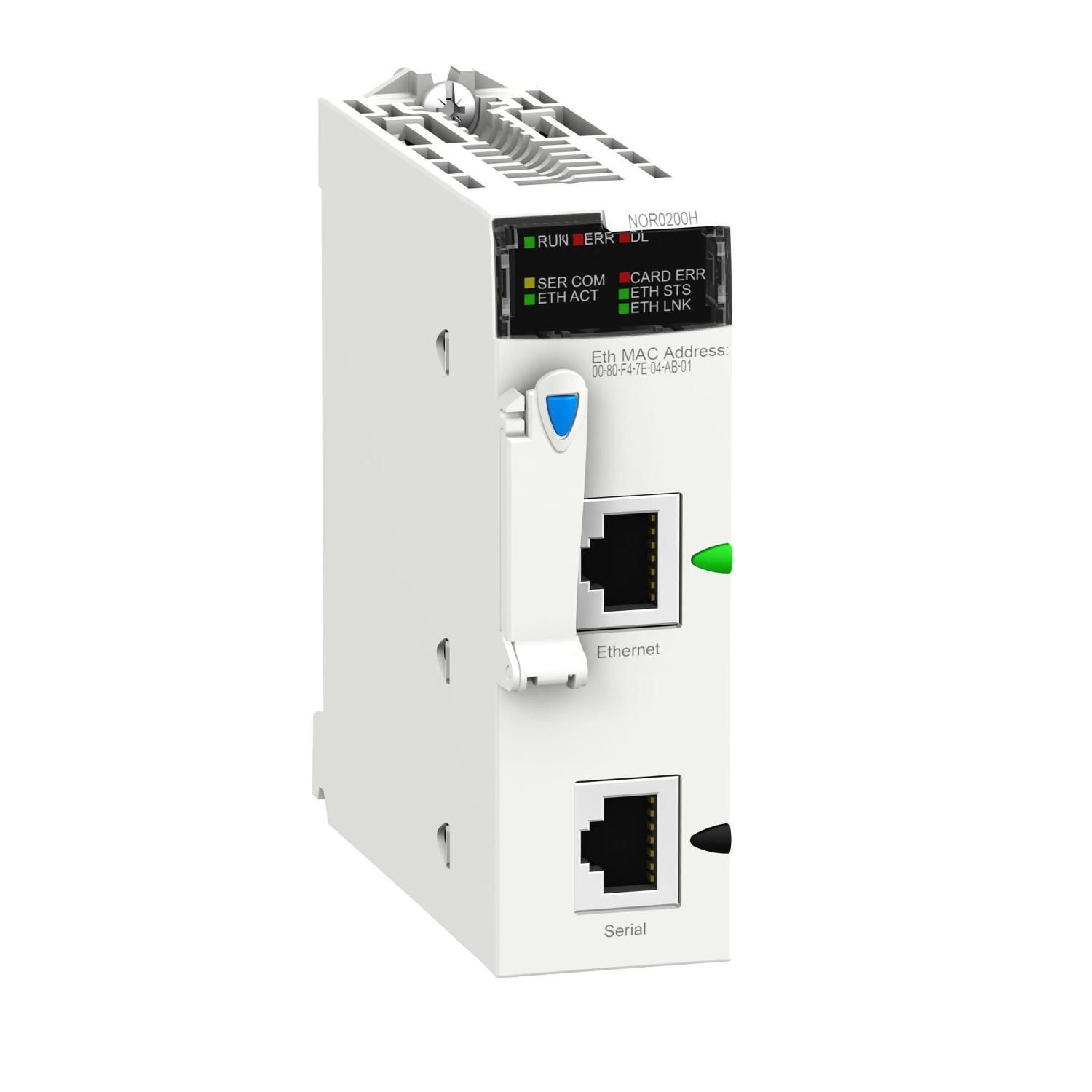

BMXNOR0200H
کارت اترنت / RTU همراه 2 عدد RJ45 اشنایدر
Ethernet / Serial RTU module - 2 x RJ45
×
![]()
مشخصات کامل
گروه محصول
Modicon X80
range of product
نوع محصول یا مولفه تجهیزات
Ethernet/Serial RTU module
product or component type
برنامه خاص محصول
For standard & severe environments
product specific application
مفهوم
Transparent Ready
concept
نوع اتصال یکپارچه
Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30Serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
integrated connection type
قالب ماژول
Conformal coating
protective treatment
سرویس ارتباطی
Bandwidth managementModbus TCP messagingDNP3/DNP3 IP protocolIEC 60870-5 -101/-104 protocolTime stamped events managementExternal modem management (serial, PSTN, GSM, GPRS/3G)Data logging in CSV filesEmail/SMS notificationsWeb server, rack viewer, data editorBootP, DHCP, FDR clientSMTP server, FTP client/server, NTP client, SNMP agent,Automatic events backup on power lossMulti-protocols support in a single module (master and slave)Transparent events routing from remote slaves to SCADA
communication service
پورت اترنت
10BASE-T/100BASE-TX
port Ethernet
شرح حافظه
Supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
memory description
حافظه استفاده شده
Activating the standard web serverUser web pages storageData logging CSV files storage
memory usage
ساپورت
Internal power supply via rack
supply
علامت گذاری
CE
marking
سیگنالینگ محلی
1 LED (green) for activity on Ethernet network (ETH ACT)1 LED (green) for processor running (RUN)1 LED (green) for status of Ethernet network (ETH STS)1 LED (red) for memory card fault (CARD ERR)1 LED (red) for processor or system fault (ERR)1 LED (red) for download in progress (DL)1 LED (yellow) for serial communication (SER COM)1 LED (green) for data rate (ETH LINK)
local signalling
جریان فعلی
95 mA at 24 V DC
current consumption
فرمت ماژول
Standard
module format
وزن خالص
0.2 kg
net weight
دمای هوای محیط برای کار
-25…70 °C
ambient air temperature for operation
رطوبت نسبی
10…95 % without condensation
relative humidity
درجه IP محافظت
IP20
IP degree of protection
بخشنامه ها
2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility2014/34/EU - ATEX directive2012/19/EU - WEEE directive
directives
گواهینامه های محصول
CEULCSARCMEACMerchant NavyATEX zone 2/22IECEx zone 2/22
product certifications
استانداردها
EN/IEC 61131-2EN/IEC 61010-2-201UL 61010-2-201CSA C22.2 No 61010-2-201IACS E10EN/IEC 61000-6-5, interface type 1 and type 2EN/IEC 61850-3, location GEN/IEC 60079-0
standards
ویژگی محیطی
Gas resistant class Gx conforming to ISA S71.04Gas resistant class 3C4 conforming to IEC 60721-3-3Dust resistant class 3S4 conforming to IEC 60721-3-3Sand resistant class 3S4 conforming to IEC 60721-3-3Salt resistant level 2 conforming to IEC 68252Mold growth resistant class 3B2 conforming to IEC 60721-3-3Fungal spore resistant class 3B2 conforming to IEC 60721-3-3Hazardous location class I division 2
environmental characteristic
نوع واحد بسته بندی 1
PCE
Unit Type of Package 1
تعداد واحدهای موجود در بسته 1
1
Number of Units in Package 1
وزن بسته 1
262 g
Package 1 Weight
ارتفاع بسته 1
5.5 cm
Package 1 Height
عرض بسته 1
11 cm
Package 1 width
طول بسته 1
11.5 cm
Package 1 Length
وزن 2 بسته
4.1 kg
Package 2 Weight
وضعیت پیشنهاد پایدار
Green Premium product
Sustainable offer status
مقررات REACh
REACh Declaration
REACh Regulation
REACh فاقد SVHC
Yes
REACh free of SVHC
بخشنامه RoHS اتحادیه اروپا
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
EU RoHS Directive
بدون مرکوری
Yes
Mercury free
اطلاعات معافیت RoHS
Yes
RoHS exemption information
مقررات RoHS چین
China RoHS declaration
China RoHS Regulation
محیط زیست
Product Environmental Profile
Environmental Disclosure
مشخصات بخشنامه
End of Life Information
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
WEEE
ضمانتنامه
18 months
Warranty
منابع رک
BMXXBP0400 and BMXXBP0400H
Rack references
a در میلی متر
242.4
a in mm
در اینچ
09.54
a in in.
BMXXBP0600 and BMXXBP0600H
307.6
12.11
BMXXBP0800 and BMXXBP0800H
372.8
14.68
BMXXBP1200 and BMXXBP1200H
503.2
19.81
