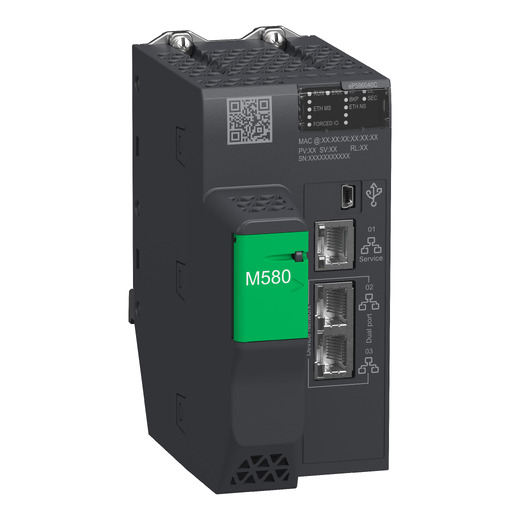

BMEP586040C
کارت پی ال سی اشنایدرپردازنده ( سی پی یو) M580، سطح 6، سخت کار
processor module M580 - Level 6 - Remote Coated
×
![]()
مشخصات کامل
Range of product
Modicon M580
Range of product
Product or component type
Processor module
Product or component type
Impregnation material
Conformal coated
Impregnation material
Number of racks
8
Number of racks
Local I/O processor capacity (discrete)
6144 I/O
Local I/O processor capacity (discrete)
Local I/O processor capacity (analog)
1536 I/O
Local I/O processor capacity (analog)
Number of application specific channel (local rack)
216
Number of application specific channel (local rack)
Application specific I/O
Serial link
HART
Motion control
Accurate time stamping
SSI encoder
Counter
HART
Motion control
Accurate time stamping
SSI encoder
Counter
Application specific I/O
Checks
Process control
Checks
Control channels
Programmable loops
Control channels
Integrated connection type
1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B
2 Ethernet TCP/IP for device network
USB type mini B
Integrated connection type
Number of remote I/O station
31 - 2 rack(s) per remote drop
Number of remote I/O station
Number of distributed equipment
64
Number of distributed equipment
Communication module processor capacity
6 Ethernet communication module
16 AS-Interface module
16 AS-Interface module
Communication module processor capacity
Communication service
RIO scanner
DIO scanner
DIO scanner
Communication service
Memory description
Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 64 MB for program and data
Integrated RAM, 10 kB for system memory
Integrated RAM, 64 MB for program and data
Memory description
Application structure
2 auxiliary tasks
1 periodic fast task
128 event tasks
1 cyclic/periodic master task
1 periodic fast task
128 event tasks
1 cyclic/periodic master task
Application structure
Number of instructions per ms
40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
50 Kinst/ms 100 % Boolean
50 Kinst/ms 100 % Boolean
Number of instructions per ms
Current consumption
300 mA at 24 V DC
Current consumption
MTBF reliability
775000 H
MTBF reliability
Marking
CE
Marking
Vibration resistance
3 gn
Vibration resistance
Shock resistance
30 gn
Shock resistance
Ambient air temperature for operation
-25…60 °C
Ambient air temperature for operation
Ambient air temperature for storage
-40…85 °C
Ambient air temperature for storage
Operating altitude
0...2000 m
2000...5000 m with derating factor
2000...5000 m with derating factor
Operating altitude
Relative humidity
5…95 % at 55 °C without condensation
Relative humidity
IP degree of protection
IP20
IP degree of protection
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
2014/30/EU - electromagnetic compatibility
2014/34/EU - ATEX directive
Directives
Product certifications
CE
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22
UL
CSA
RCM
EAC
Merchant Navy
ATEX zone 2/22
IECEx zone 2/22
Product certifications
Standards
IEC 61131-2
IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
IEC 60079-0
IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
IEC 60079-0
Standards
Environmental characteristic
Gas resistant class Gx conforming to ISA S71.04
Gas resistant class 3C4 conforming to IEC 60721-3-3
Dust resistant class 3S4 conforming to IEC 60721-3-3
Sand resistant class 3S4 conforming to IEC 60721-3-3
Salt resistant level 2 conforming to IEC 68252
Mold growth resistant class 3B2 conforming to IEC 60721-3-3
Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Hazardous location class I division 2
Gas resistant class 3C4 conforming to IEC 60721-3-3
Dust resistant class 3S4 conforming to IEC 60721-3-3
Sand resistant class 3S4 conforming to IEC 60721-3-3
Salt resistant level 2 conforming to IEC 68252
Mold growth resistant class 3B2 conforming to IEC 60721-3-3
Fungal spore resistant class 3B2 conforming to IEC 60721-3-3
Hazardous location class I division 2
Environmental characteristic
Protective treatment
Conformal coating
Protective treatment
Supply
Internal power supply via rack
Supply
Status LED
1 LED (green) processor running (RUN)
1 LED (red) processor or system fault (ERR)
1 LED (red) I/O module fault (I/O)
1 LED (green) download in progress (DL)
1 LED (red) memory card or CPU flash fault (BACKUP)
1 LED (green/red) ETH MS (Ethernet port configuration status)
1 LED (green/red) Eth NS (Ethernet network status)
1 LED (green) I/O values overrided by user (FORCED IO)
1 LED (red) processor or system fault (ERR)
1 LED (red) I/O module fault (I/O)
1 LED (green) download in progress (DL)
1 LED (red) memory card or CPU flash fault (BACKUP)
1 LED (green/red) ETH MS (Ethernet port configuration status)
1 LED (green/red) Eth NS (Ethernet network status)
1 LED (green) I/O values overrided by user (FORCED IO)
Status LED
Product weight
0.849 kg
Product weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
9.000 cm
Package 1 Height
Package 1 Width
17.900 cm
Package 1 Width
Package 1 Length
25.200 cm
Package 1 Length
Package 1 Weight
883.000 g
Package 1 Weight
Unit Type of Package 2
S03
Unit Type of Package 2
Number of Units in Package 2
6
Number of Units in Package 2
Package 2 Height
30.000 cm
Package 2 Height
Package 2 Width
30.000 cm
Package 2 Width
Package 2 Length
40.000 cm
Package 2 Length
Package 2 Weight
5.775 kg
Package 2 Weight
