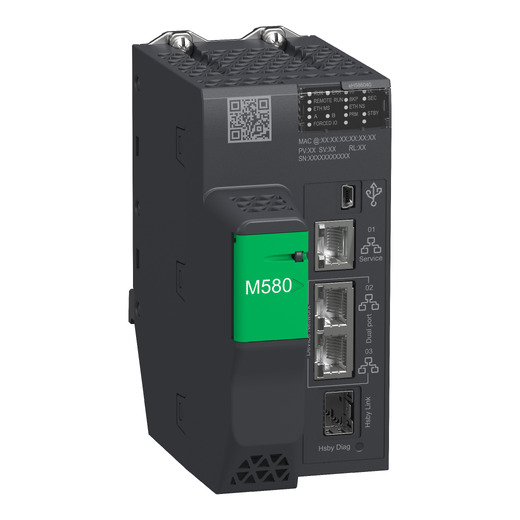

BMEH586040
کارت پی ال سی اشنایدر CPU ریداندانس ( سی پی یو) HSBY M580، سطح 6، غیرمتمرکز
redundant HSBY processor module M580 - Level 6 - Remote
×
![]()
مشخصات کامل
Range of product
Modicon M580
Range of product
Product or component type
Redundant processor module
Product or component type
Number of racks
1
Number of racks
Application specific I/O
Counter
SSI encoder
Serial link
HART
Accurate time stamping
Motion control
SSI encoder
Serial link
HART
Accurate time stamping
Motion control
Application specific I/O
Checks
Process control
Checks
Control channels
Programmable loops
Control channels
Integrated connection type
1 Ethernet TCP/IP for service port
2 Ethernet TCP/IP for device network
USB type mini B
1 Ethernet for HSBY port
2 Ethernet TCP/IP for device network
USB type mini B
1 Ethernet for HSBY port
Integrated connection type
Number of remote I/O station
31 - 2 rack(s) per X80 and Quantum drops
Number of remote I/O station
Number of distributed equipment
64
Number of distributed equipment
Communication module processor capacity
6 Ethernet communication module
16 AS-Interface module
16 AS-Interface module
Communication module processor capacity
Communication service
DIO scanner
RIO scanner
RIO scanner
Communication service
Memory description
Expandable flash, 4 GB for data storage
Integrated RAM, 10 kB for system memory
Integrated RAM, 64 MB for program and data
Integrated RAM, 4096 kB for HSBY data
Integrated RAM, 10 kB for system memory
Integrated RAM, 64 MB for program and data
Integrated RAM, 4096 kB for HSBY data
Memory description
Application structure
1 cyclic/periodic master task
1 periodic fast task
1 periodic fast task
Application structure
Cybersecurity
Achilles certified
DoS prevention
IPSec
SNMP logging
Syslog protocol support
Transport layer security
Audit trail
Embedded firewall
Firmware signature
Password protection
Port hardening
Secure communication (HTTPS)
Security log
DoS prevention
IPSec
SNMP logging
Syslog protocol support
Transport layer security
Audit trail
Embedded firewall
Firmware signature
Password protection
Port hardening
Secure communication (HTTPS)
Security log
Cybersecurity
Number of instructions per ms
40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
50 Kinst/ms 100 % Boolean
50 Kinst/ms 100 % Boolean
Number of instructions per ms
Current consumption
365 mA at 24 V DC
Current consumption
MTBF reliability
650000 H
MTBF reliability
Marking
CE
Marking
Vibration resistance
3 gn
Vibration resistance
Shock resistance
30 gn
Shock resistance
Ambient air temperature for operation
0…60 °C
Ambient air temperature for operation
Ambient air temperature for storage
-40…85 °C
Ambient air temperature for storage
Operating altitude
0...2000 m
2000...5000 m with derating factor
2000...5000 m with derating factor
Operating altitude
Relative humidity
5…95 % at 55 °C without condensation
Relative humidity
IP degree of protection
IP20
IP degree of protection
Directives
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility
2014/30/EU - electromagnetic compatibility
Directives
Product certifications
CE
UL
CSA
RCM
EAC
Merchant Navy
UL
CSA
RCM
EAC
Merchant Navy
Product certifications
Standards
IEC 61131-2
IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
IEC 61010-2-201
UL 61010-2-201
CSA C22.2 No 61010-2-201
IACS E10
EN/IEC 61000-6-5, interface type 1 and type 2
EN/IEC 61850-3, location G
Standards
Environmental characteristic
Hazardous location class I division 2
Environmental characteristic
Supply
Internal power supply via rack
Supply
Status LED
1 LED (green) processor running (RUN)
1 LED (red) processor or system fault (ERR)
1 LED (red) I/O module fault (I/O)
1 LED (green) download in progress (DL)
1 LED (red) memory card or CPU flash fault (BACKUP)
1 LED (green/red) ETH MS (Ethernet port configuration status)
1 LED (green/red) Eth NS (Ethernet network status)
1 LED (green) peer processor running (REMOTE RUN)
1 LED (green) processor ID set to A (A)
1 LED (green) processor ID set to B (B)
1 LED (green) processor acting as Primary (PRIM)
1 LED (green) processor acting as Standby (STBY)
1 LED (green) I/O values overrided by user (FORCED IO)
1 LED (green) Hot standby link status (Hsby Diag)
1 LED (red) processor or system fault (ERR)
1 LED (red) I/O module fault (I/O)
1 LED (green) download in progress (DL)
1 LED (red) memory card or CPU flash fault (BACKUP)
1 LED (green/red) ETH MS (Ethernet port configuration status)
1 LED (green/red) Eth NS (Ethernet network status)
1 LED (green) peer processor running (REMOTE RUN)
1 LED (green) processor ID set to A (A)
1 LED (green) processor ID set to B (B)
1 LED (green) processor acting as Primary (PRIM)
1 LED (green) processor acting as Standby (STBY)
1 LED (green) I/O values overrided by user (FORCED IO)
1 LED (green) Hot standby link status (Hsby Diag)
Status LED
Product weight
0.849 kg
Product weight
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
8.700 cm
Package 1 Height
Package 1 Width
17.700 cm
Package 1 Width
Package 1 Length
25.000 cm
Package 1 Length
Package 1 Weight
878.000 g
Package 1 Weight
Unit Type of Package 2
S03
Unit Type of Package 2
Number of Units in Package 2
6
Number of Units in Package 2
Package 2 Height
30.000 cm
Package 2 Height
Package 2 Width
30.000 cm
Package 2 Width
Package 2 Length
40.000 cm
Package 2 Length
Package 2 Weight
5.631 kg
Package 2 Weight
