ATV610C11N4

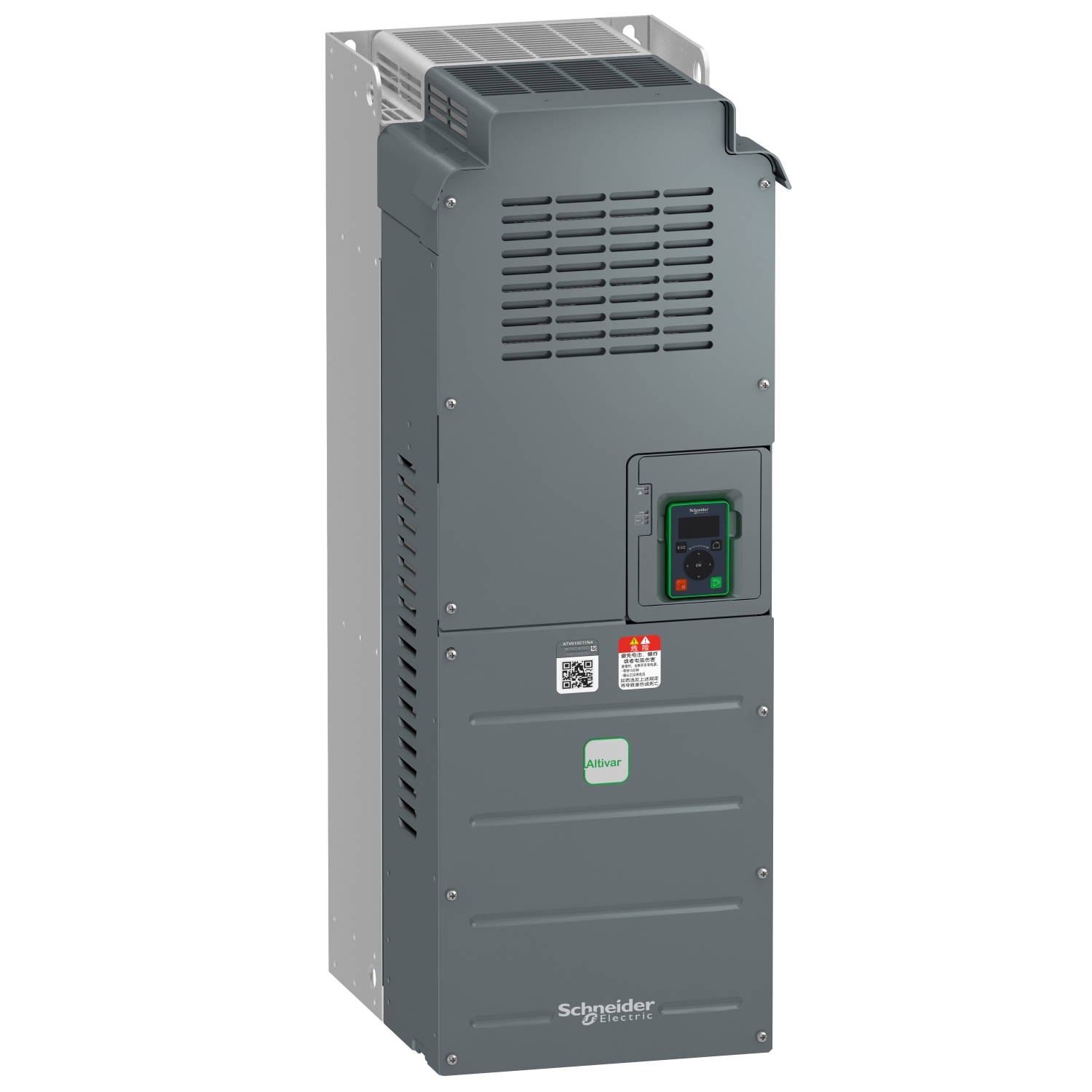

درایو اشنایدر سری ATV610 سه فاز 110 کیلو وات

variable speed drive ATV610, 110 kW/150HP, 380...415 V, IP20

دیتاشیت

کاتالوگ

مشخصات کامل

گروه محصول

Easy Altivar 610

range of product

نوع محصول یا مولفه تجهیزات

Variable speed drive

product or component type

برنامه خاص محصول

Fan, pump, compressor, conveyor

product specific application

نام کوتاه دستگاه

ATV610

device short name

گونه

Standard version

variant

کاربرد محصول

Asynchronous motors

product destination

حالت نصب

Cabinet mount

mounting mode

فیلتر EMC

Integrated conforming to EN/IEC 61800-3 category C3 with 50 m

EMC filter

درجه IP محافظت

IP20

IP degree of protection

نوع خنک کننده

Forced convection

type of cooling

فرکانس تأمین

50...60 Hz +/-5 %

supply frequency

تعداد فازهای شبکه

3 phases

network number of phases

ولتاژ منبع تغذیه

380...415 V - 15...10 %

[Us] rated supply voltage

قدرت موتور کیلووات

110 kW for normal duty
90 kW for heavy duty

motor power kW

قدرت موتور اسب بخار

150 hp for normal duty
125 hp for heavy duty

motor power hp

جریان خط

201 A at 380 V (normal duty)
165 A at 415 V (normal duty)
170 A at 380 V (heavy duty)
160 A at 415 V (heavy duty)

line current

خط سه بعدی

50 kA

prospective line Isc

توان ظاهری

118.6 kVA at 415 V (normal duty)
115 kVA at 415 V (heavy duty)

apparent power

جریان خروجی مداوم

211 A at 2.5 kHz for normal duty
173 A at 2.5 kHz for heavy duty

continuous output current

حداکثر جریان گذرا

232 A during 60 s (normal duty)
260 A during 60 s (heavy duty)

maximum transient current

مشخصات کنترل موتور ناهمزمان

Variable torque standard
Optimized torque mode
Constant torque standard

asynchronous motor control profile

فرکانس خروجی

0.0001…0.5 kHz

Output frequency

فرکانس سوئیچ اسمی

2.5 kHz

nominal switching frequency

فرکانس سوئیچینگ

1...8 kHz adjustable

switching frequency

تعداد سرعت از پیش تعیین شده

16 preset speeds

number of preset speeds

پروتکل پورت ارتباطی

Modbus serial

communication port protocol

آپشن کارت

Slot A: communication card, Profibus DP V1
Slot A: digital or analog I/O extension card
Slot A: relay output card

option card

ولتاژ خروجی

<= power supply voltage

output voltage

جبران لغزش موتور

Can be suppressed
Adjustable
Not available in permanent magnet motor law
Automatic whatever the load

motor slip compensation

رمپ های شتاب و کاهش سرعت

Linear adjustable separately from 0.01 to 9000 s
S, U or customized

acceleration and deceleration ramps

ترمز در حالت سکون

By DC injection

braking to standstill

نوع محافظت

Thermal protection: motor
Motor phase break: motor
Thermal protection: drive
Overheating: drive
Overcurrent between output phases and earth: drive
Overload of output voltage: drive
Short-circuit protection: drive
Motor phase break: drive
Overvoltages on the DC bus: drive
Line supply overvoltage: drive
Line supply undervoltage: drive
Line supply phase loss: drive
Overspeed: drive
Break on the control circuit: drive

protection type

فرکانس رزولیشن

Display unit: 0.1 Hz
Analog input: 0.012/50 Hz

frequency resolution

اتصال برق

Control, screw terminal: 0.5...1.5 mm²
Line side, screw terminal: 2 x 50...3 x 120 mm²
Motor, screw terminal: 3 x 50...3 x 120 mm²

electrical connection

نوع اتصال دهنده

1 RJ45 (on the remote graphic terminal) for Modbus serial

connector type

رابط فیزیکی

2-wire RS 485 for Modbus serial

physical interface

قاب انتقال

RTU for Modbus serial

transmission frame

نرخ انتقال

4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial

transmission rate

نوع پلاریته

No impedance for Modbus serial

type of polarization

تعداد آدرسها

1…247 for Modbus serial

number of addresses

روش دسترسی

Slave

method of access

ساپورت

External supply for digital inputs: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection

supply

سیگنالینگ محلی

2 LEDs for local diagnostic
1 LED (yellow) for embedded communication status
2 LEDs (dual colour) for communication module status
1 LED (red) for presence of voltage

local signalling

عرض

320 mm

width

ارتفاع

852 mm
1159 mm with IP21 conformity kit

height

عمق

390 mm

depth

وزن خالص

82 kg

net weight

تعداد ورودی آنالوگ

analogue input number

نوع ورودی آنالوگ

AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution 12 bits
AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250 Ohm, resolution 12 bits
AI2, AI3 software-configurable temperature probe or water level sensor

analogue input type

تعداد ورودی دیجیتال

discrete input number

نوع ورودی گسسته

DI1...DI6 programmable as logic input, 24 V DC (<= 30 V), impedance: 3.5 kOhm
DI5, DI6 programmable as pulse input: 0…30 kHz, 24 V DC (<= 30 V)

discrete input type

سازگاری ورودی

DI1...DI6: logic input level 1 PLC conforming to EN/IEC 61131-2
DI5, DI6: pulse input level 1 PLC conforming to IEC 65A-68

input compatibility

منطق ورودی گسسته

Positive logic (source): DI1...DI6 configurable logic input, < 5 V (state 0), > 11 V (state 1)
Negative logic (sink): DI1...DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1)
Positive logic (source): DI5, DI6 configurable pulse input, < 0.6 V (state 0), > 2.5 V (state 1)

discrete input logic

شماره خروجی آنالوگ

analogue output number

نوع خروجی آنالوگ

Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470 Ohm, resolution 10 bits

analogue output type

مدت زمان نمونه گیری

5 ms +/- 0.1 ms (AI1, AI2, AI3) - analog input
2 ms +/- 0.5 ms (DI1...DI6)configurable - discrete input
5 ms +/- 1 ms (DI5, DI6)configurable - pulse input
10 ms +/- 1 ms (AQ1, AQ2) - analog output

sampling duration

دقت

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

accuracy

خطای خطی

AI1, AI2, AI3: +/- 0.15 % of maximum value for analog input
AQ1, AQ2: +/- 0.2 % for analog output

linearity error

شماره خروجی رله

relay output number

نوع خروجی رله

Configurable relay logic R1: fault relay NO/NC electrical durability 100000 cycles
Configurable relay logic R2: sequence relay NO electrical durability 100000 cycles
Configurable relay logic R3: sequence relay NO electrical durability 100000 cycles

relay output type

زمان رفرش

Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)

refresh time

حداقل جریان سوئیچینگ

Relay output R1, R2, R3: 5 mA at 24 V DC

minimum switching current

حداکثر جریان سوئیچینگ

Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 250 V AC
Relay output R1, R2, R3 on resistive load, cos phi = 1: 3 A at 30 V DC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC
Relay output R1, R2, R3 on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC

maximum switching current

ایزوله

Between power and control terminals

isolation

مقاومت عایق

> 1 MOhm 500 V DC for 1 minute to earth

insulation resistance

میزان نویز

76 dB conforming to 86/188/EEC

noise level

اتلاف توان در W

2026 W(forced convection) at 380 V, switching frequency 2.5 kHz

power dissipation in W

موقعیت عملیاتی

Vertical +/- 10 degree

operating position

سازگاری الکترومغناطیسی

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6

electromagnetic compatibility

درجه آلودگی

2 conforming to EN/IEC 61800-5-1

pollution degree

مقاومت در برابر لرزش

1.5 mm peak to peak (f= 2…13 Hz) conforming to IEC 60068-2-6
1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6

vibration resistance

مقاومت در برابر ضربه

6 gn for 11 ms conforming to IEC 60068-2-27

shock resistance

رطوبت نسبی

5…95 % without condensation conforming to IEC 60068-2-3

relative humidity

دمای هوای محیط برای کار

-15…45 °C (without derating)
45…60 °C (with derating factor)

ambient air temperature for operation

ارتفاع عملیاتی

<= 1000 m without derating
1000...4800 m with current derating 1 % per 100 m

operating altitude

ویژگی محیطی

Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3
Dust pollution resistance class 3S3 conforming to EN/IEC 60721-3-3

environmental characteristic

استانداردها

EN/IEC 61800-3
Environment 2 category C3 EN/IEC 61800-3
EN/IEC 61800-5-1
IEC 60721-3

standards

گواهینامه های محصول

REACH

product certifications

علامت گذاری

marking

وزن بسته 1

85 kg

Package 1 Weight

وضعیت پیشنهاد پایدار

Green Premium product

Sustainable offer status

مقررات REACh

REACh Declaration

REACh Regulation

بخشنامه RoHS اتحادیه اروپا

Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration

EU RoHS Directive

بدون مرکوری

Yes

Mercury free

اطلاعات معافیت RoHS

Yes

RoHS exemption information

مقررات RoHS چین

China RoHS declaration

China RoHS Regulation

محیط زیست

Product Environmental Profile

Environmental Disclosure

مشخصات بخشنامه

End of Life Information

Circularity Profile

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

WEEE
