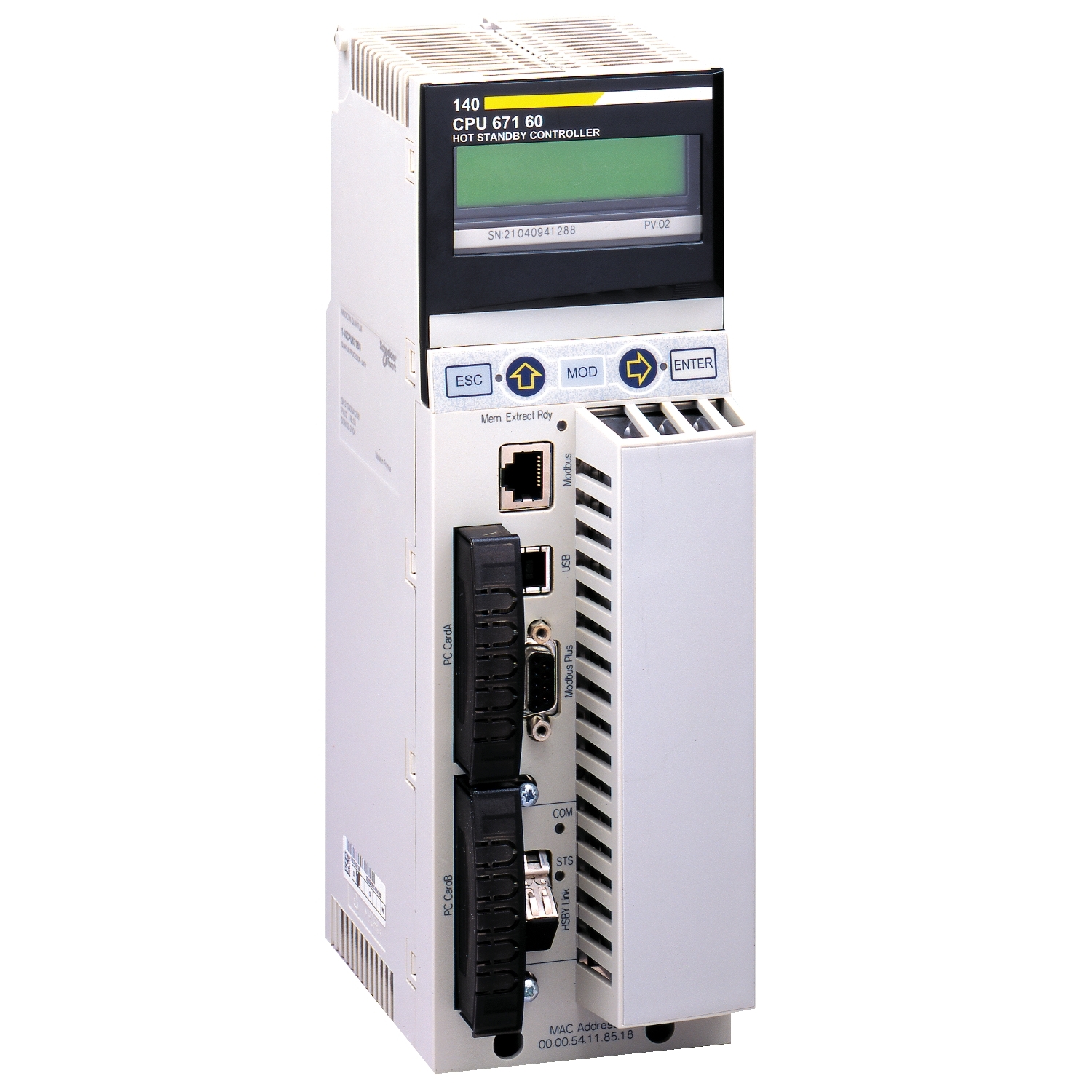

140CPU67160

سی پی یو (CPU) کوانتوم 65170 مدل 140CPU67160

Unity Hot Standby processor with multimode Ethernet - 1024 kB - 266 MHz

دیتاشیت

مشخصات کامل

Range of product

Modicon Quantum automation platform

Range of product

Product or component type

Unity processor

Product or component type

Mode of transmission

Multi mode

Mode of transmission

Clock frequency

266 MHz

Clock frequency

Number of slots

2
10
16
4
6

Number of slots

Number of racks

2 - local rack(s)

Number of racks

Number of distributed I/O station

63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)

Number of distributed I/O station

Number of remote I/O station

31 - 2 rack(s) per S908 remote I/O
31 - 2 rack(s) per ethernet Quantum remote I/O
16 - 2 rack(s) per ethernet X80 remote I/O

Number of remote I/O station

Discrete I/O number

31744 inputs, 31744 outputs - remote
8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
0 - local - forbidden in Hot Standby application

Discrete I/O number

Analogue I/O number

500 inputs, 500 outputs - distributed - per network Modbus Plus
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
1984 inputs,1984 outputs - remote
0 - local - forbidden in Hot Standby application

Analogue I/O number

Application specific I/O

High-speed interrupt inputs
Serial link
Accurate time stamping
Counter

Application specific I/O

Communication service

Ethernet router

Communication service

Number of optional modules

6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Number of optional modules

Maximum number of connections

1 USB
2 AS-Interface - distributed
4 AS-Interface - remote
6 Ethernet TCP/IP - local
6 Modbus Plus - local
6 Profibus DP - local
1 Modbus (RS232/485 Modbus/ASCII)

Maximum number of connections

Integrated connection type

1 Modbus Plus with
1 Modbus with
1 USB with
1 optic fibre with Hot Standby

Integrated connection type

Checks

Process control
Hot standby

Checks

Memory description

Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 1024 kB - 512 kB for data

Memory description

Switch function

Key switch memory port on/off

Switch function

Application structure

1 periodic fast task - forbidden in Hot Standby application
128 I/O interrupt tasks - forbidden in Hot Standby application
128 interrupt tasks - forbidden in Hot Standby application
32 timer interrupt tasks - forbidden in Hot Standby application
4 auxiliary tasks - forbidden in Hot Standby application
1 cyclic/periodic master task -

Application structure

Number of instructions per ms

10.28 Kinst/ms 100 % Boolean
10.07 Kinst/ms 65 % Boolean and 35 % numerical

Number of instructions per ms

System overhead

0.2 ms for fast task
1 ms for master task

System overhead

Bus current requirement

2500 mA

Bus current requirement

Local signalling

1 LED (green) for Ethernet activity (COM)
1 LED (red) for Ethernet collision

Local signalling

Electrical connection

1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
1 connector, connector type: RJ45 for connecting Modbus bus
1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km

Electrical connection

Product certifications

CE
UL
Misc (Marine)
CSA
GOST

Product certifications

Standards

HazLoc

Standards

Unit Type of Package 1

PCE

Unit Type of Package 1

Number of Units in Package 1

Package 1 Height

11.0 cm

Package 1 Height

Package 1 Width

19.0 cm

Package 1 Width

Package 1 Length

32.5 cm

Package 1 Length

Package 1 Weight

1.447 kg

Package 1 Weight

Warranty

18 months

Warranty
