140CPU65260

سی پی یو (CPU) یونیتی، بدون ریاضی. سی پی یو (CPU) کمکی، 266 مگاهرتز مدل 140CPU65260

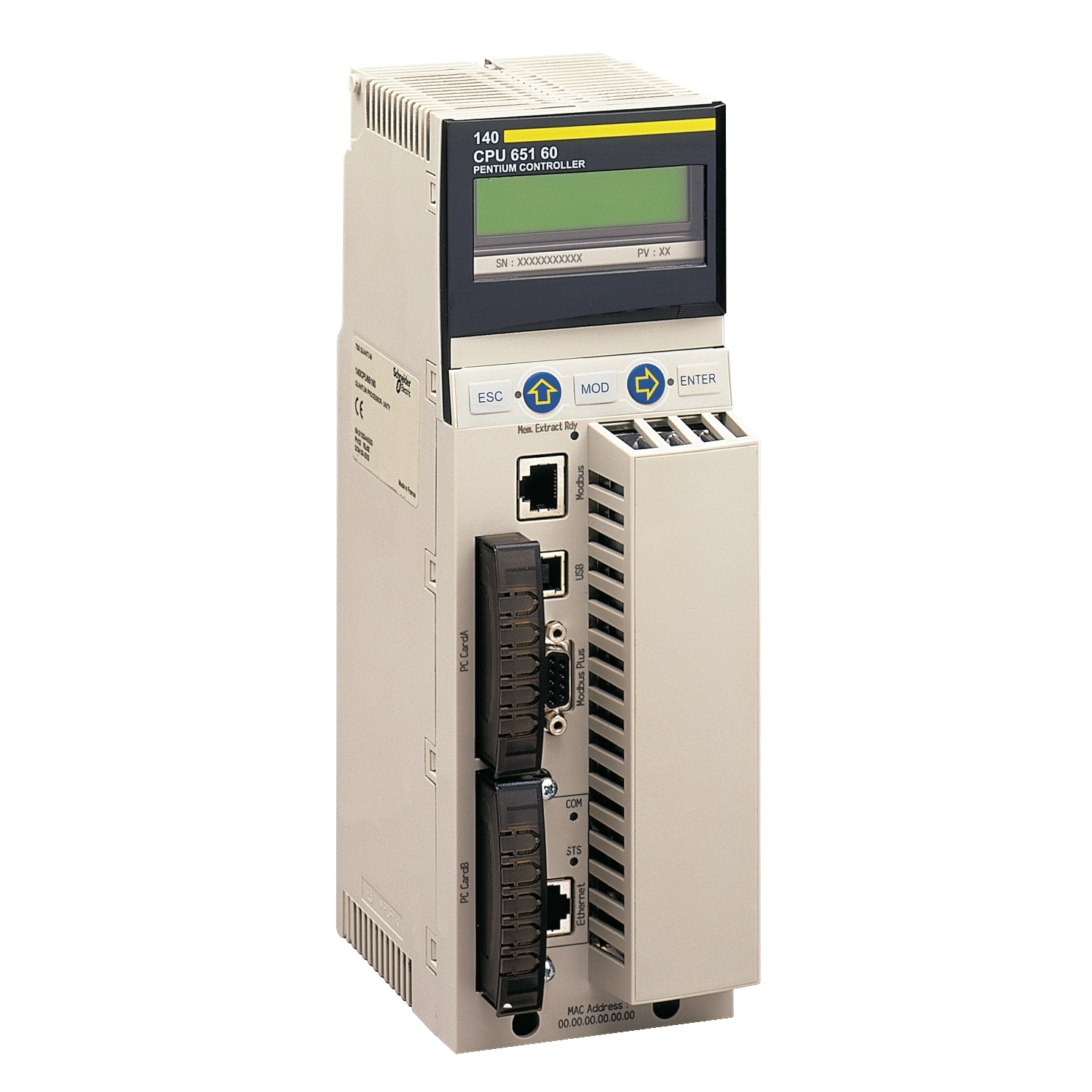

Unity processor Modicon Quantum - 3072 kB - 266 MHz

دیتاشیت

مشخصات کامل

Range of product

Modicon Quantum automation platform

Range of product

Product or component type

Unity processor

Product or component type

Clock frequency

266 MHz

Clock frequency

Number of slots

16
6
2
10
4

Number of slots

Number of racks

2 - local rack(s)

Number of racks

Number of distributed I/O station

63 station(s) - 1 rack(s) - 1 Modbus Plus network(s)

Number of distributed I/O station

Number of remote I/O station

31 - 2 rack(s) per S908 remote I/O
31 - 2 rack(s) per ethernet Quantum remote I/O
31 - 2 rack(s) per ethernet X80 remote I/O

Number of remote I/O station

Discrete I/O number

8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
31744 inputs, 31744 outputs - S908 remote I/O

Discrete I/O number

Analogue I/O number

500 inputs, 500 outputs - distributed - per network Modbus Plus
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O
1984 inputs,1984 outputs - remote

Analogue I/O number

Application specific I/O

Counter
Accurate time stamping
Serial link
High-speed interrupt inputs

Application specific I/O

Communication service

Ethernet router

Communication service

Number of optional modules

6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Number of optional modules

Maximum number of connections

1 USB
2 AS-Interface - distributed
4 AS-Interface - remote
6 Ethernet TCP/IP - local
6 Modbus Plus - local
6 Profibus DP - local
1 Modbus (RS232/485 Modbus/ASCII)

Maximum number of connections

Integrated connection type

1 Modbus Plus with
1 Ethernet TCP/IP with
1 Modbus with
1 USB with

Integrated connection type

Checks

Process control

Checks

Memory description

Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 3072 kB

Memory description

Switch function

Key switch memory port on/off

Switch function

Application structure

1 cyclic/periodic master task -
1 periodic fast task -
128 I/O interrupt tasks -
128 interrupt tasks -
32 timer interrupt tasks -
4 auxiliary tasks -

Application structure

Number of instructions per ms

10.28 Kinst/ms 100 % Boolean
10.07 Kinst/ms 65 % Boolean and 35 % numerical

Number of instructions per ms

System overhead

0.2 ms for fast task
1 ms for master task

System overhead

Bus current requirement

2760 mA

Bus current requirement

Local signalling

1 LED (green) for Ethernet activity (COM)
1 LED (red) for Ethernet collision

Local signalling

Electrical connection

1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
1 connector, connector type: RJ45 for connecting Ethernet network
1 connector, connector type: RJ45 for connecting Modbus bus

Electrical connection

Product certifications

CSA
Misc (Marine)
UL
GOST
CE

Product certifications

Standards

HazLoc

Standards

Unit Type of Package 1

PCE

Unit Type of Package 1

Number of Units in Package 1

Package 1 Height

11.0 cm

Package 1 Height

Package 1 Width

18.5 cm

Package 1 Width

Package 1 Length

33.0 cm

Package 1 Length

Package 1 Weight

1.432 kg

Package 1 Weight

Warranty

18 months
