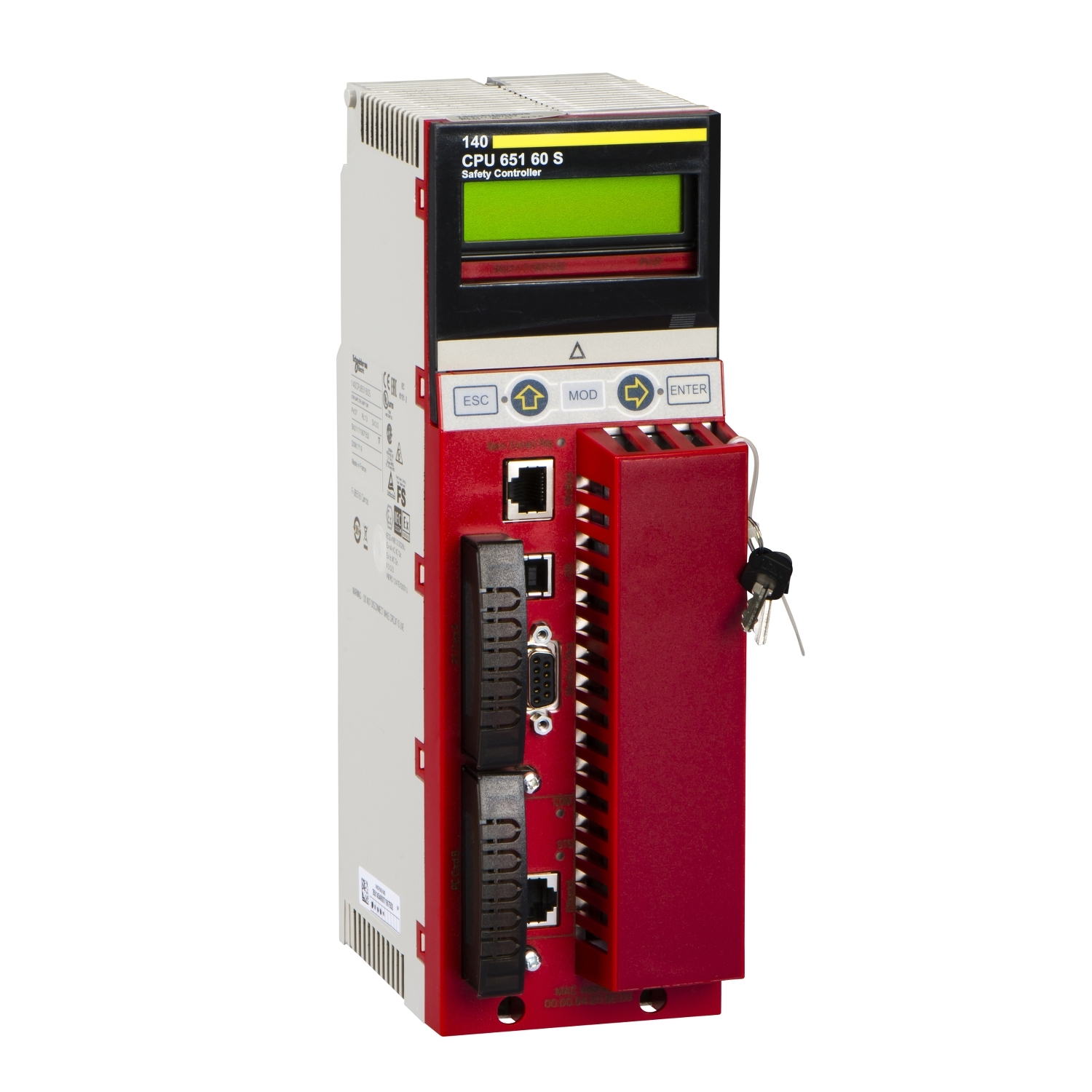

Unity processor Modicon Quantum - 1024 kB - 266 MHz
×
![]()
مشخصات کامل
Range of product
Modicon Quantum automation platform
Range of product
Product or component type
Unity safety processor
Product or component type
Software designation
Unity Pro XL safety
Software designation
Backup type
Lithium battery 990XCP98000
Backup type
Clock frequency
266 MHz
Clock frequency
Number of slots
2
4
6
16
10
3
4
6
16
10
3
Number of slots
Number of racks
1 - local rack(s)
Number of racks
Number of remote I/O station
31 - 1 rack(s) per remote
Number of remote I/O station
Discrete I/O number
Unlimited (13 slots max) - local - forbidden in Hot Standby application
31744 inputs, 31744 outputs - remote
31744 inputs, 31744 outputs - remote
Discrete I/O number
Analogue I/O number
Unlimited (26 slots max) - local - forbidden in Hot Standby application
1984 inputs,1984 outputs - remote
1984 inputs,1984 outputs - remote
Analogue I/O number
Number of optional modules
6 Ethernet 140NOE77111
Number of optional modules
Maximum number of connections
1 Modbus Plus - local
1 Modbus (RS232/485 Modbus/ASCII)
1 USB - local
6 Ethernet TCP/IP - local
1 Modbus (RS232/485 Modbus/ASCII)
1 USB - local
6 Ethernet TCP/IP - local
Maximum number of connections
Integrated connection type
1 Ethernet TCP/IP local
1 Modbus local
1 Modbus Plus local
1 USB local
1 Modbus local
1 Modbus Plus local
1 USB local
Integrated connection type
Checks
Process control
Checks
Memory description
Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 1024 kB
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 1024 kB
Memory description
Switch function
Key switch memory port on/off
Switch function
Application structure
1 cyclic/periodic master task
Application structure
Execution time per instruction
0.09...0.12 µs on word
0.105...0.15 µs Boolean
0.96...1.02 µs on fixed-point arithmetic
0.105...0.15 µs Boolean
0.96...1.02 µs on fixed-point arithmetic
Execution time per instruction
Execution time for 1 Kinstruction
5.03 65 % Boolean and 35 % numerical
5.14 100 % Boolean
5.14 100 % Boolean
Execution time for 1 Kinstruction
System overhead
1.5 ms for master task
System overhead
Bus current requirement
2760 mA
Bus current requirement
Maximum supply current
90 A 60 °C lithium battery
60 µA lithium battery
60 µA lithium battery
Maximum supply current
[Us] rated supply voltage
3 V DC lithium battery
[Us] rated supply voltage
Battery capacity
1200 Ah
Battery capacity
Battery life
10 year(s)
Battery life
Display type
LCD 2 lines of 16 characters
Display type
Local signalling
1 LED (green) for Ethernet activity (COM)
1 LED (red) for Ethernet collision (ERR)
1 LED (red) for Ethernet collision (ERR)
Local signalling
Electrical connection
1 female connector SUB-D 9 for connecting to the Modbus Plus network
1 female connector USB type B for connecting to PC
2 connectors RJ45 for connecting Modbus bus
1 female connector USB type B for connecting to PC
2 connectors RJ45 for connecting Modbus bus
Electrical connection
Marking
CE
Marking
Product certifications
CSA
C-Tick
TÜV Rheinland (SIL3)
CSA HazLoc
C-Tick
TÜV Rheinland (SIL3)
CSA HazLoc
Product certifications
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
11.0 cm
Package 1 Height
Package 1 Width
18.5 cm
Package 1 Width
Package 1 Length
32.5 cm
Package 1 Length
Package 1 Weight
1.39 kg
Package 1 Weight
Warranty
18 months
