140CPU65150

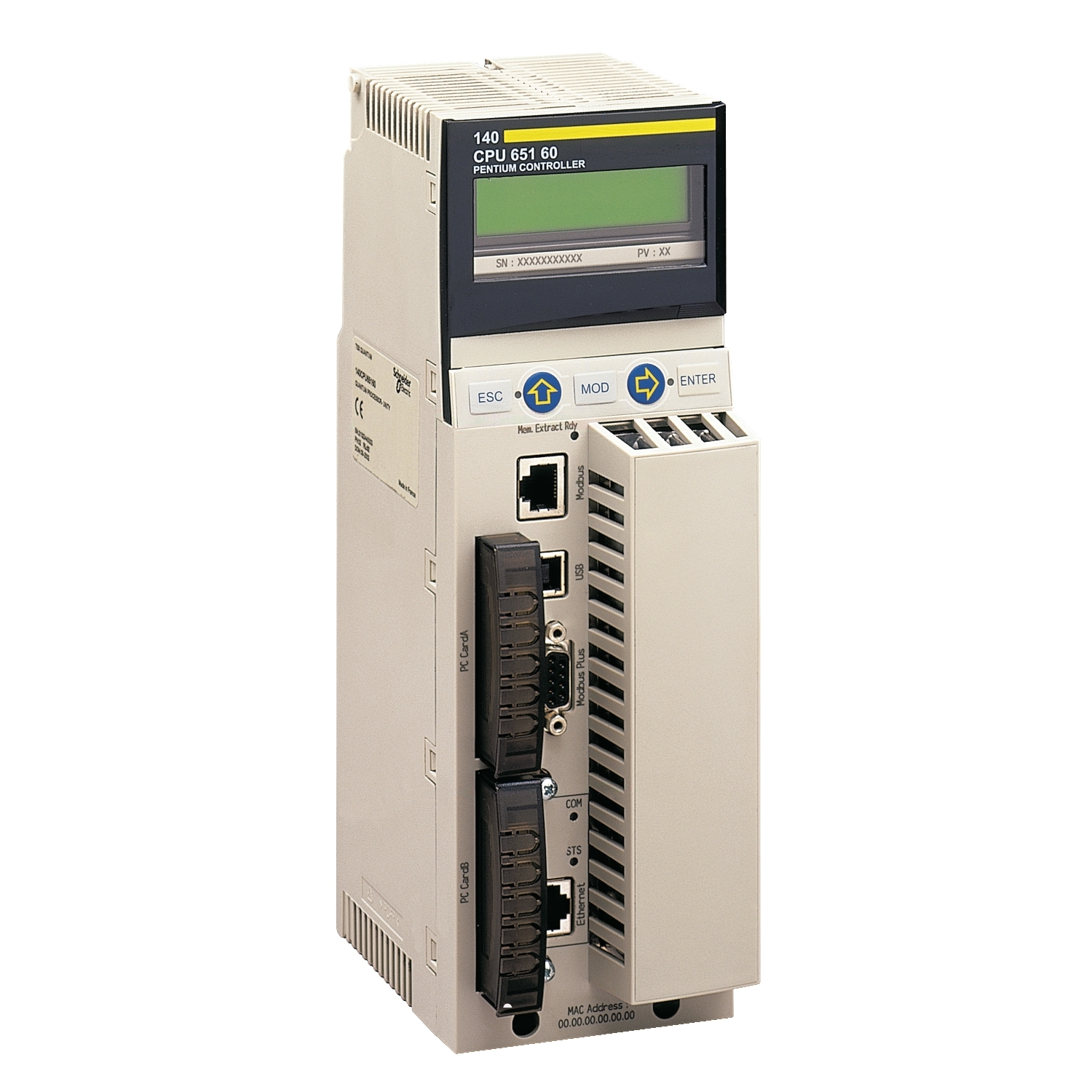

سی پی یو (CPU) کوانتوم 65150 مدل 140CPU65150

Unity processor, Modicon Quantum automation platform, Modbus Plus, 768kB RAM, 166MHz

دیتاشیت

کاتالوگ

مشخصات کامل

Range of Product

Modicon Quantum automation platform

Range of Product

Product or Component Type

Unity processor

Product or Component Type

Clock frequency

166 MHz

Clock frequency

Number of slots

10
16
6
4
2

Number of slots

Number of racks

2 - local

Number of racks

Number of distributed I/O station

63 1 3 Modbus Plus

Number of distributed I/O station

Number of remote I/O station

31 - 2 S908 remote I/O
31 - 2 ethernet Quantum remote I/O
16 - 2 ethernet X80 remote I/O

Number of remote I/O station

Discrete I/O number

31744 inputs, 31744 outputs - remote
8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O

Discrete I/O number

Analogue I/O number

500 inputs, 500 outputs - distributed - per network Modbus Plus
1984 inputs,1984 outputs - S908 remote I/O
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O

Analogue I/O number

Application specific I/O

Accurate time stamping
Serial link
High-speed interrupt inputs
Counter

Application specific I/O

Communication Service

Ethernet router

Communication Service

Number of optional modules

6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Number of optional modules

Maximum number of connections

1 USB
2 AS-Interface - distributed
4 AS-Interface - remote
6 Ethernet TCP/IP - local
6 Modbus Plus - local
6 Profibus DP - local
1 Modbus RS232/485 Modbus/ASCII)

Maximum number of connections

Integrated connection type

1 Modbus Plus
1 Ethernet TCP/IP
1 Modbus
1 USB

Integrated connection type

Checks

Process control

Checks

Memory description

Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 768 kB

Memory description

Switch Function

Key switch memory port on/off

Switch Function

Application structure

1 cyclic/periodic master task -
1 periodic fast task -
128 I/O interrupt tasks -
128 interrupt tasks -
32 timer interrupt tasks -
4 auxiliary tasks -

Application structure

Number of instructions per ms

10.28 Kinst/ms 100 % Boolean
10.07 Kinst/ms 65 % Boolean and 35 % numerical

Number of instructions per ms

System overhead

0.2 ms fast task
1 ms master task

System overhead

Bus current requirement

2160 mA

Bus current requirement

Local signalling

for Ethernet activity (COM) 1 LED (green)
for Ethernet collision 1 LED (red)

Local signalling

Electrical connection

1 female connector SUB-D 9 for connecting to the Modbus Plus network
1 connector RJ45 for connecting Ethernet network
1 connector RJ45 for connecting Modbus bus

Electrical connection

Product Certifications

Misc (Marine)
UL
CE
CSA
GOST

Product Certifications

Standards

HazLoc

Standards
