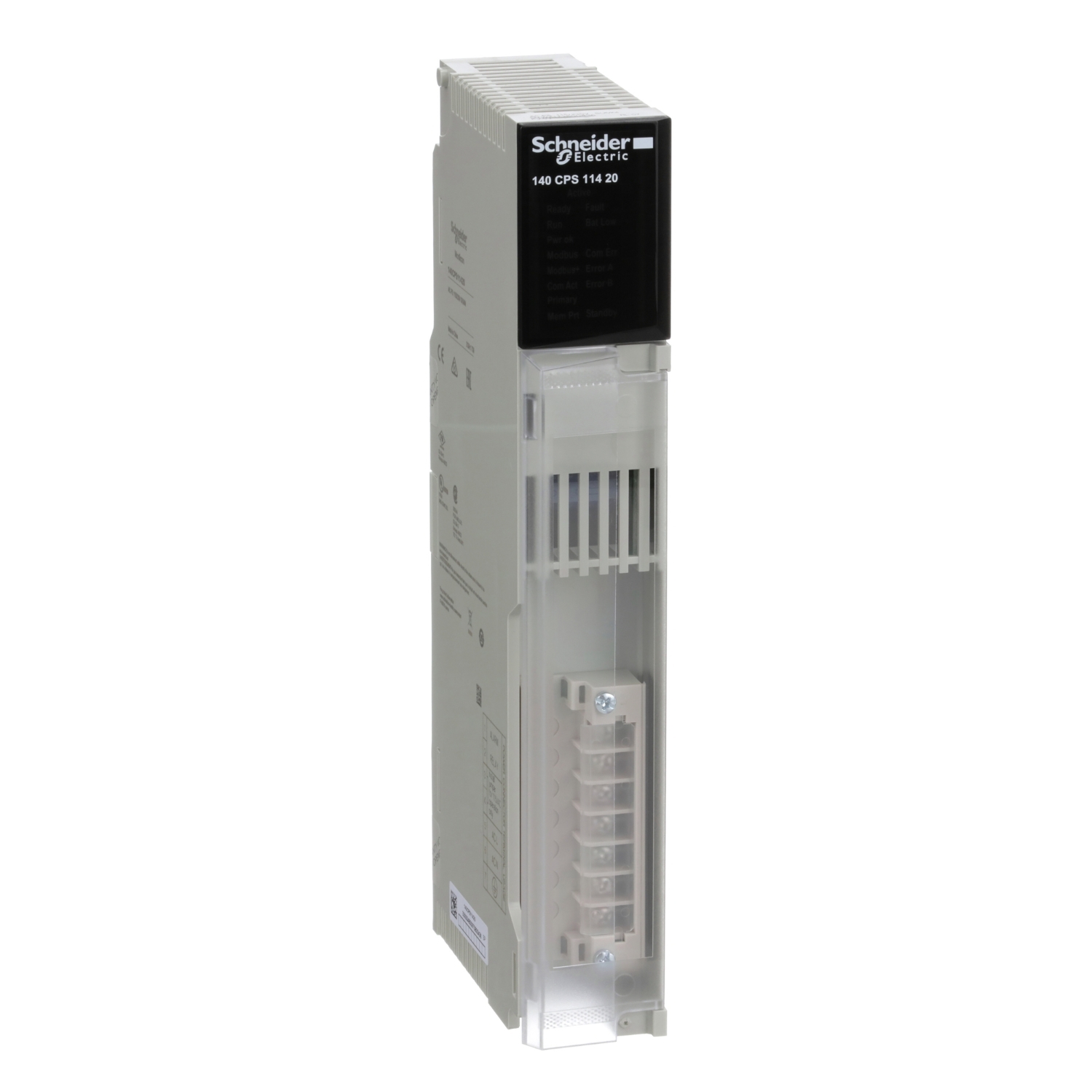

140CPS11420
ماژول منبع تغذیه کوانتومی مدیکون، 115 V/230 V AC، افزودنی یا دستگاه جداگانه مدل 140CPS11420
power supply module Modicon Quantum - 115 V/230 V AC - summable or standalone
×
![]()
مشخصات کامل
Range of product
Modicon Quantum automation platform
Range of product
Product or component type
Power supply module
Product or component type
Power supply type
Summable or standalone
Power supply type
Input voltage
115 V (93...132 V) AC 47…63 Hz
230 V (170...276 V) AC
230 V (170...276 V) AC
Input voltage
Input current
1300 mA at 115 V
750 mA at 230 V
750 mA at 230 V
Input current
Inrush current
19 A 230 V
38 A 115 V
38 A 115 V
Inrush current
rated power in VA
130 VA
rated power in VA
Associated fuse rating
2 A, slow-blow
Associated fuse rating
Harmonic distortion
<= 10 % of fundamental rms value
Harmonic distortion
Output voltage
5.1 V DC
Output voltage
Power supply output current
11 A 60 °C standalone
20 A 60 °C summable
20 A 60 °C summable
Power supply output current
Output overvoltage protection
Internal
Output overvoltage protection
Output overload protection
Internal
Output overload protection
Power dissipation
6 + (1.5 x Iout) where Iout is in A
Power dissipation
Alarm output
1 NC 6 A 220 V power supply fault
Alarm output
Local signalling
1 LED (green) for power (PWR OK)
Local signalling
Marking
CE
Marking
Module format
Standard
Module format
Net weight
0.65 kg
Net weight
Standards
UL 508
CSA C22.2 No 142
CSA C22.2 No 142
Standards
Product certifications
cUL
Product certifications
Resistance to electrostatic discharge
4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
Resistance to electrostatic discharge
Resistance to electromagnetic fields
10 V/m 80…2000 MHz conforming to IEC 801-3
Resistance to electromagnetic fields
Ambient air temperature for operation
0…60 °C
Ambient air temperature for operation
Ambient air temperature for storage
-40…85 °C
Ambient air temperature for storage
Relative humidity
95 % without condensation
Relative humidity
Operating altitude
<= 5000 m
Operating altitude
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
4.49 cm
Package 1 Height
Package 1 Width
16.3 cm
Package 1 Width
Package 1 Length
31.08 cm
Package 1 Length
Package 1 Weight
785.4 g
Package 1 Weight
Warranty
18 months
Warranty
