140AVO02000

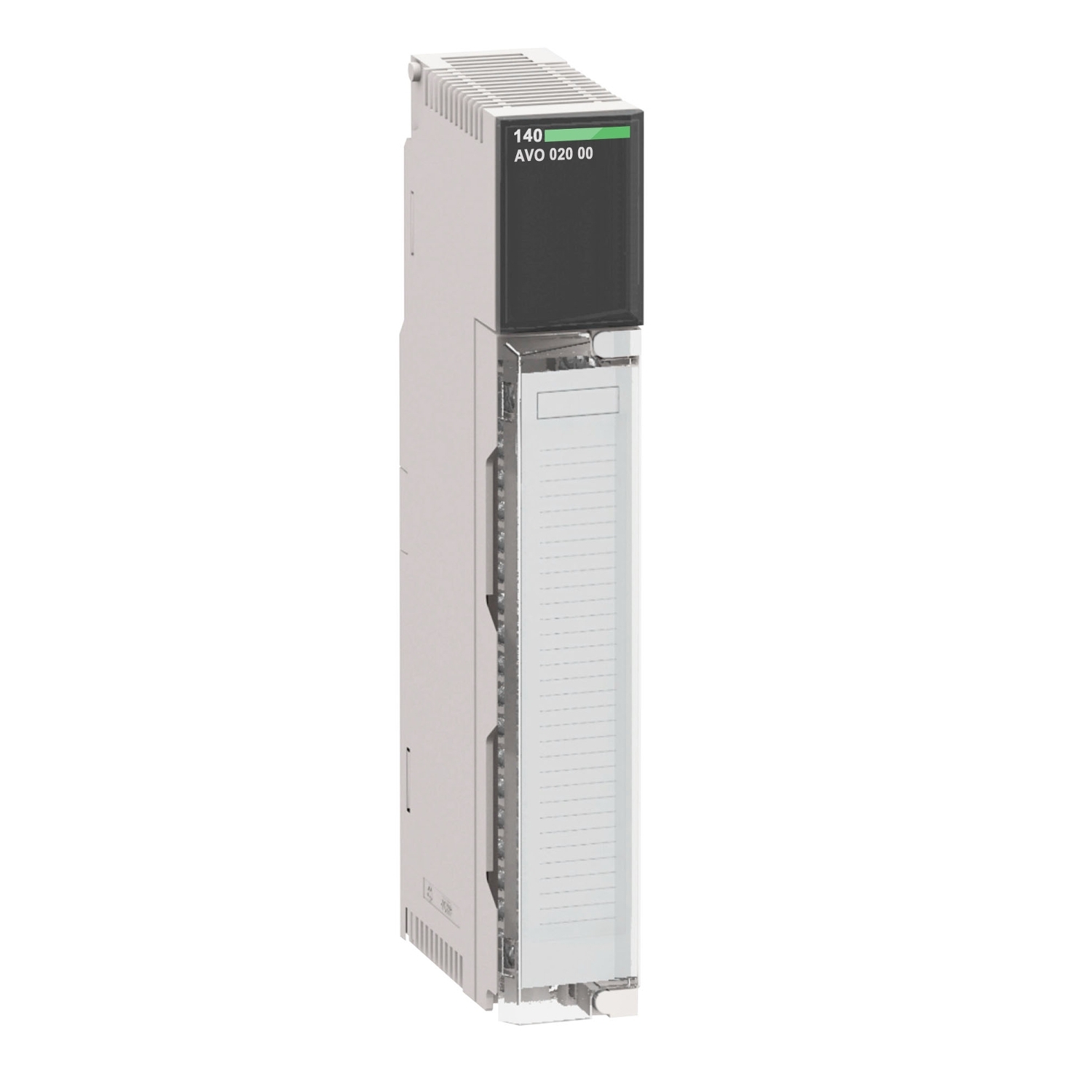

ماژول خروجی آنالوگ مدیکون کوانتوم، 4 O، ماژول چند برد مدل 140AVO02000
analog output module Modicon Quantum - 4 O
×
![]()
مشخصات کامل
Range of Product
Modicon Quantum automation platform
Range of Product
Product or Component Type
Analogue output module
Product or Component Type
Analogue output number
4
Analogue output number
Addressing requirement
4 output words
Addressing requirement
Analogue output range
+/- 10 V >= 1000 Ohm bipolar voltage
+/- 5 V >= 500 Ohm bipolar voltage
0...10 V >= 1000 Ohm unipolar voltage
0...5 V >= 500 Ohm unipolar voltage
+/- 5 V >= 500 Ohm bipolar voltage
0...10 V >= 1000 Ohm unipolar voltage
0...5 V >= 500 Ohm unipolar voltage
Analogue output range
Analogue output resolution
12 bits
Analogue output resolution
Analogue output current
-10…10 mA
Analogue output current
Source resistance
0.1 Ohm
Source resistance
Maximum cable distance between devices
1312.3 ft (400 m)
Maximum cable distance between devices
Absolute accuracy error
+/- 0.15 % of full scale 77 °F (25 °C)
Absolute accuracy error
Linearity
+/- 1 LSB
Linearity
Accuracy drift according to temperature
0.003 % of full scale/°C unipolar
0.004 % of full scale/°C bipolar
0.005 % of full scale/°C maximum unipolar
0.007 % of full scale/°C maximum bipolar
0.004 % of full scale/°C bipolar
0.005 % of full scale/°C maximum unipolar
0.007 % of full scale/°C maximum bipolar
Accuracy drift according to temperature
Isolation between channels
500 V for 1 minute 47...63 Hz AC
Isolation between channels
Isolation between channels and bus
780 V for 1 minute AC
Isolation between channels and bus
Update time
3 ms
Update time
Setting time
700 µs to +/- 0.1 % of the final value maximum
Setting time
Bus current requirement
700 mA
Bus current requirement
Maximum power dissipation in W
4.5 W
Maximum power dissipation in W
Associated fuse rating
0.063 mA 3 AG fast blow 250 V
Associated fuse rating
Marking
CE
Marking
Local signalling
for bus communication is present (Active) 1 LED (green)
for external fault 1 LED (red)
for channel is turned on 4 LEDs (green)
for channel fault 4 LEDs (red)
for external fault 1 LED (red)
for channel is turned on 4 LEDs (green)
for channel fault 4 LEDs (red)
Local signalling
Module format
Standard
Module format
Net Weight
0.7 lb(US) (0.3 kg)
Net Weight
Product Certifications
FM Class 1 Division 2
cUL
cUL
Product Certifications
Standards
UL 508
CSA C22.2 No 142
CSA C22.2 No 142
Standards
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Resistance to electromagnetic fields
Ambient air temperature for operation
32…140 °F (0…60 °C)
Ambient air temperature for operation
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Storage
Relative Humidity
95 % without condensation
Relative Humidity
Operating altitude
<= 16404.2 ft (5000 m)
Operating altitude
Category
US1PC2118155
Category
Discount Schedule
PC21
Discount Schedule
GTIN
3595861126626
GTIN
Returnability
No
Returnability
Country of origin
FR
Country of origin
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
1.97 in (5.0 cm)
Package 1 Height
Package 1 Width
6.50 in (16.5 cm)
Package 1 Width
Package 1 Length
12.40 in (31.5 cm)
Package 1 Length
Package 1 Weight
16.5 oz (467.0 g)
Package 1 Weight
Warranty
18 months
Warranty
