140AVI03000

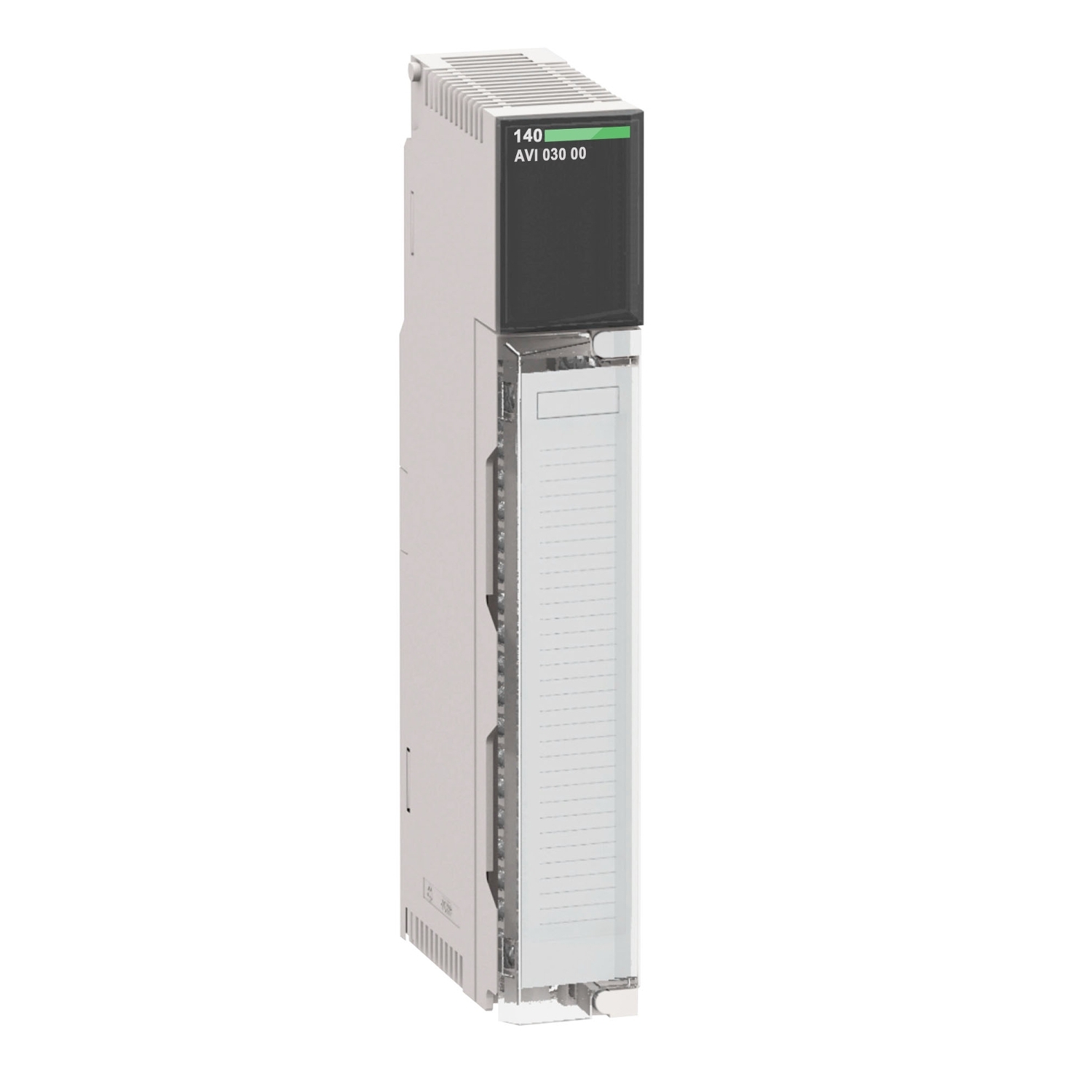

ماژول ورودی آنالوگ مدیکون کوانتوم، 8 I، ماژول چند برد مدل 140AVI03000

analog input module Modicon Quantum - 8 I multirange

دیتاشیت

کاتالوگ

مشخصات کامل

Range of Product

Modicon Quantum automation platform

Range of Product

Product or Component Type

Analogue input module

Product or Component Type

Type of filter

Single pole low pass - 3 dB at 847 Hz +/- 20 %

Type of filter

Analogue input number

Input type

Differential

Input type

Addressing requirement

9 input words

Addressing requirement

Analogue input type

Bipolar current 20 mA
Bipolar voltage +/- 10 V
Bipolar voltage +/- 5 V
Unipolar current 0...20 mA
Unipolar voltage 0...10 V
Unipolar voltage 0...5 V

Analogue input type

Analogue input resolution

16 bits +/- 10 V
16 bits +/- 5 V
16 bits 0...10 V
16 bits 0...20 mA
16 bits 0...5 V
16 bits 20 mA

Analogue input resolution

Linear measuring range

(input range) x 1.024 mA
(input range) x 1.024 V

Linear measuring range

Absolute maximum input

50 V DC
25 mA

Absolute maximum input

Input impedance

> 20 Ohm voltage
250 MOhm +/- 0.03 %

Input impedance

Absolute accuracy error

+/- 0.03 %
+/- 0.05 % of full scale maximum

Absolute accuracy error

Linearity error

+/- 0.008 %

Linearity error

Accuracy drift according to temperature

+/- 0.0015 % of full scale/°C
<= 0.004 % of full scale /°C

Accuracy drift according to temperature

Common mode rejection

> - 80 dB 60 Hz

Common mode rejection

Isolation between channels and bus

500 Vrms AC 60 s
750 V DC

Isolation between channels and bus

Isolation between channels

135 Vrms AC
200 V DC

Isolation between channels

Update time

10 ms

Update time

Fault type

Broken wire 4...20 mA
Overtacking scale 1...5 V

Fault type

Marking

Local signalling

for bus communication is present (Active) 1 LED (green)
for external fault 1 LED (red)
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)

Local signalling

Bus current requirement

280 mA

Bus current requirement

Power dissipation in W

2.2 W

Power dissipation in W

Module format

Standard

Module format

Net Weight

0.7 lb(US) (0.3 kg)

Net Weight

Standards

UL 508
CSA C22.2 No 142

Standards

Product Certifications

FM Class 1 Division 2
cUL

Product Certifications

Resistance to electrostatic discharge

4 kV contact IEC 801-2
8 kV on air IEC 801-2

Resistance to electrostatic discharge

Resistance to electromagnetic fields

9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Resistance to electromagnetic fields

Ambient air temperature for operation

32…140 °F (0…60 °C)

Ambient air temperature for operation

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Ambient Air Temperature for Storage

Relative Humidity

95 % without condensation

Relative Humidity

Operating altitude

<= 16404.2 ft (5000 m)

Operating altitude
