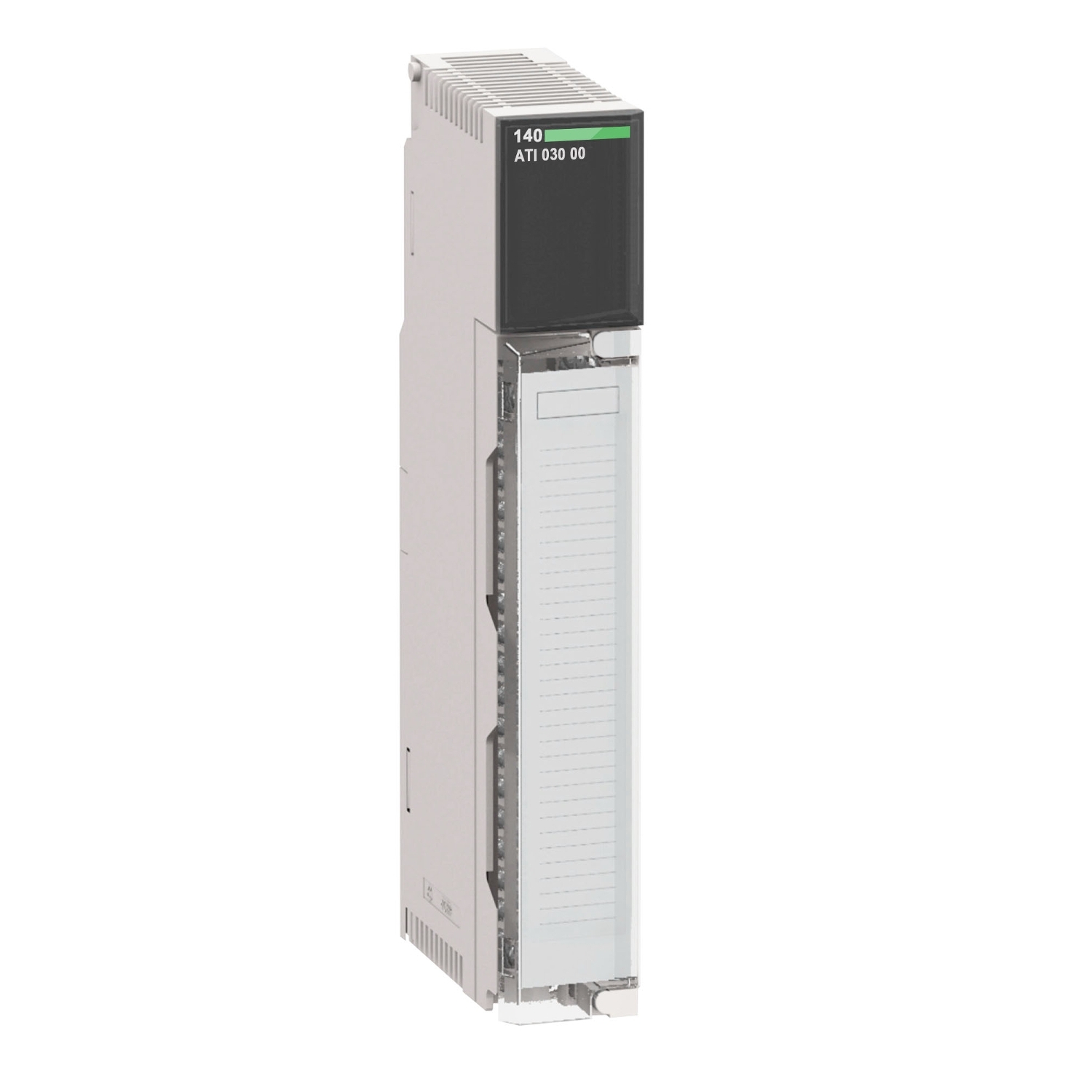

140ATI03000

ماژول ورودی آنالوگ مدیکون کوانتوم، 8 I، ماژول چند برد مدل 140ATI03000

analog input module Modicon Quantum - 8 I thermocouple

دیتاشیت

کاتالوگ

مشخصات کامل

Range of Product

Modicon Quantum automation platform

Range of Product

Product or Component Type

Analogue input module

Product or Component Type

Type of filter

Notch filter - 3 dB at 50/60 Hz
Single pole low pass - 3 dB at 20 Hz

Type of filter

Analogue input number

Addressing requirement

10 input words

Addressing requirement

Analogue input type

Thermocouple - 210...760 °C thermocouple J
Thermocouple - 270...1000 °C thermocouple E
Thermocouple - 270...1370 °C thermocouple K
Thermocouple - 270...400 °C thermocouple T
Thermocouple - 50...1665 °C thermocouple R
Thermocouple - 50...1665 °C thermocouple S

Analogue input type

Analogue input resolution

16 bits

Analogue input resolution

Absolute accuracy error

+/- 2 °C plus + 0.1 % of reading thermocouple E
+/- 2 °C plus + 0.1 % of reading thermocouple J
+/- 2 °C plus + 0.1 % of reading thermocouple K
+/- 2 °C plus + 0.1 % of reading thermocouple T
+/- 4 °C plus + 0.1 % of reading thermocouple R
+/- 4 °C plus + 0.1 % of reading thermocouple S

Absolute accuracy error

Linearity error

1 °C, 0.1 °C, 1 F, 0.1 F - 210...760 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1000 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...1370 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 270...400 °C
1 °C, 0.1 °C, 1 F, 0.1 F - 50...1665 °C

Linearity error

Accuracy drift according to temperature

0.15 µV/°C + 0.0015 % of reading/°C max low level voltage

Accuracy drift according to temperature

Common mode rejection

> - 120 dB 50/60 Hz

Common mode rejection

Isolation between channels and bus

1780 V AC 60 s
2500 V DC 60 s

Isolation between channels and bus

Isolation between channels

300 V DC
220 V AC

Isolation between channels

Update time

1000 ms

Update time

Fault type

Broken wire
Overtacking scale

Fault type

Marking

Cold junction compensation

Internal 32…140 °F (0…60 °C)

Cold junction compensation

Local signalling

for bus communication is present (Active) 1 LED (green)
for external fault 1 LED (red)
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)

Local signalling

Bus current requirement

280 mA

Bus current requirement

Power dissipation in W

1.5 W

Power dissipation in W

Module format

Standard

Module format

Net Weight

0.7 lb(US) (0.3 kg)

Net Weight

Standards

CSA C22.2 No 142
UL 508

Standards

Product Certifications

cUL
FM Class 1 Division 2

Product Certifications

Resistance to electrostatic discharge

4 kV contact IEC 801-2
8 kV on air IEC 801-2

Resistance to electrostatic discharge

Resistance to electromagnetic fields

9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3

Resistance to electromagnetic fields

Ambient air temperature for operation

32…140 °F (0…60 °C)

Ambient air temperature for operation

Ambient Air Temperature for Storage

-40…185 °F (-40…85 °C)

Ambient Air Temperature for Storage

Relative Humidity

95 % without condensation

Relative Humidity

Operating altitude

<= 16404.2 ft (5000 m)

Operating altitude
