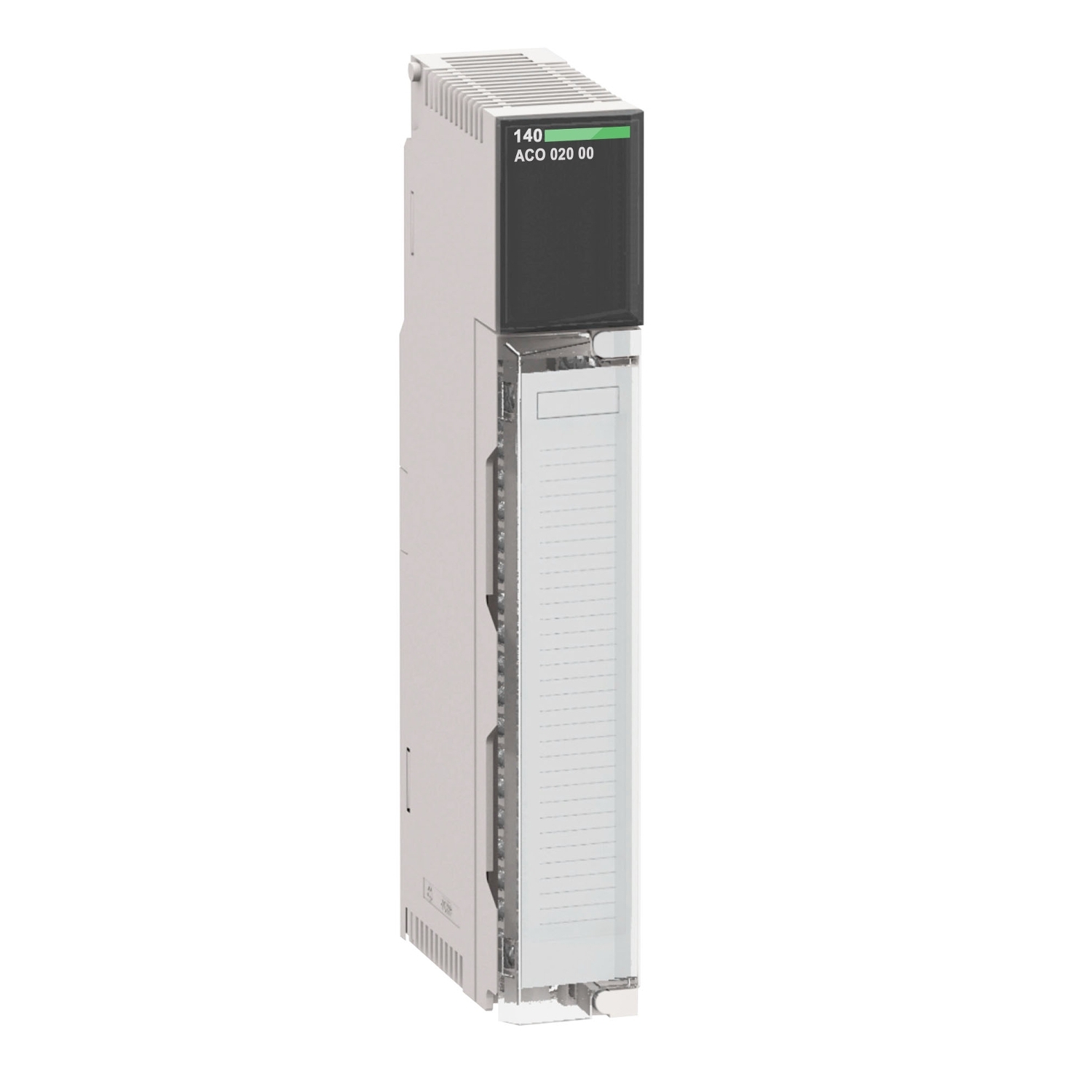

140ACO02000
ماژول خروجی آنالوگ مدیکون کوانتوم، 4 O، 4-20mA مدل 140ACO02000
analog output module Modicon Quantum - 4 O - 4..20 mA, 12 bits bipolar current
×
![]()
مشخصات کامل
Range of Product
Modicon Quantum automation platform
Range of Product
Product or Component Type
Analogue output module
Product or Component Type
Analogue output number
4
Analogue output number
Addressing requirement
4 output words
Addressing requirement
Loop voltage
12…30 V DC
Loop voltage
Maximum voltage drop
<30 V 20 mA
Maximum voltage drop
Analogue output range
4...20 mA 0...4096 counts, 12 bits bipolar current
Analogue output range
Absolute accuracy error
+/- 0.20 % of full scale 77 °F (25 °C)
Absolute accuracy error
Linearity
+/- 1 LSB
Linearity
Accuracy drift according to temperature
+/- 0.004 % of full scale/°C
+/- 0.007 % of full scale/°C maximum
+/- 0.007 % of full scale/°C maximum
Accuracy drift according to temperature
Isolation between channels
500 V 47...63 Hz AC
750 V for 1 minute DC
750 V for 1 minute DC
Isolation between channels
Update time
3 ms
Update time
Setting time
900 µs to +/- 0.1 % of the final value
Setting time
Fault type
Open circuit 4...20 mA
Fault type
Bus current requirement
480 mA
Bus current requirement
Maximum power dissipation in W
5.3 W
Maximum power dissipation in W
External power requirement
12...30 V
External power requirement
Marking
CE
Marking
Local signalling
for bus communication is present (Active) 1 LED (green)
for external fault 1 LED (red)
for channel is turned on 4 LEDs (green)
for channel fault 4 LEDs (red)
for external fault 1 LED (red)
for channel is turned on 4 LEDs (green)
for channel fault 4 LEDs (red)
Local signalling
Module format
Standard
Module format
Net Weight
0.7 lb(US) (0.3 kg)
Net Weight
Product Certifications
FM Class 1 Division 2
cUL
cUL
Product Certifications
Standards
CSA C22.2 No 142
UL 508
UL 508
Standards
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Resistance to electromagnetic fields
ambient air temperature for operation
32…140 °F (0…60 °C)
ambient air temperature for operation
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Storage
Relative Humidity
95 % without condensation
Relative Humidity
Operating altitude
<= 16404.2 ft (5000 m)
Operating altitude
Category
US1PC2118155
Category
Discount Schedule
PC21
Discount Schedule
GTIN
3595861126572
GTIN
Returnability
Yes
Returnability
Country of origin
US
Country of origin
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
1.89 in (4.8 cm)
Package 1 Height
Package 1 Width
6.50 in (16.5 cm)
Package 1 Width
Package 1 Length
12.40 in (31.5 cm)
Package 1 Length
Package 1 Weight
16.1 oz (457.0 g)
Package 1 Weight
Warranty
18 months
Warranty
