140ACI04000

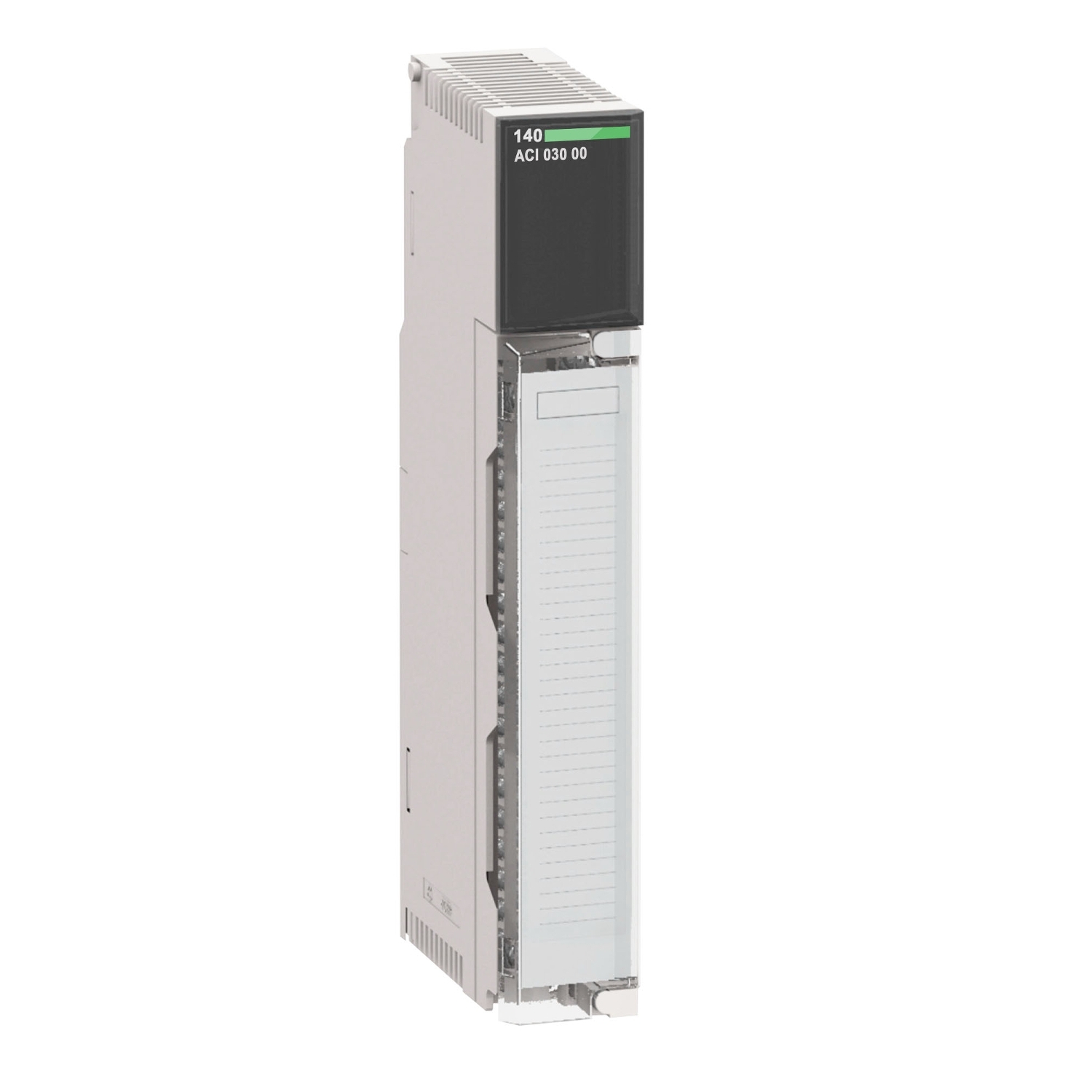

ماژول ورودی آنالوگ مدیکون کوانتوم، 16 I، ماژول چند برد مدل 140ACI04000
analog input module Modicon Quantum - 16 I multirange
×
![]()
مشخصات کامل
Range of Product
Modicon Quantum automation platform
Range of Product
Product or Component Type
Analogue input module
Product or Component Type
Type of filter
Single pole low pass - 3 dB at 34 Hz +/- 25 %
Type of filter
Analogue input number
16
Analogue input number
Input type
Differential
Input type
Addressing requirement
17 input words
Addressing requirement
Analogue input resolution
0...16000 counts 4...20 mA
0...20000 counts 0...20 mA
0...25000 counts 0...25 mA
0...4095 counts 4...20 mA
0...20000 counts 0...20 mA
0...25000 counts 0...25 mA
0...4095 counts 4...20 mA
Analogue input resolution
Absolute maximum input
30 mA
Absolute maximum input
Input impedance
250 Ohm
Input impedance
Absolute accuracy error
+/- 0.125 % of full scale
Absolute accuracy error
Linearity error
+/- 12 µA max 4...20 mA
+/- 6 µA max 0...20 mA
+/- 6 µA max 0...25 mA
+/- 6 µA max 4...20 mA
+/- 6 µA max 0...20 mA
+/- 6 µA max 0...25 mA
+/- 6 µA max 4...20 mA
Linearity error
Accuracy drift according to temperature
+/- 0.0025 % of full scale/°C
<= 0.0050 % of full scale /°C
<= 0.0050 % of full scale /°C
Accuracy drift according to temperature
Common mode rejection
> - 90 dB 60 Hz
Common mode rejection
Isolation between channels and bus
1780 V AC 60 s
Isolation between channels and bus
Update time
15 ms 2 wires/4 wires
Update time
Fault type
Broken wire 4...20 mA
Fault type
Marking
CE
Marking
Local signalling
for bus communication is present (Active) 1 LED (green)
for external fault 1 LED (red)
for channel is turned on 16 LEDs (green)
for channel fault 16 LEDs (red)
for external fault 1 LED (red)
for channel is turned on 16 LEDs (green)
for channel fault 16 LEDs (red)
Local signalling
Bus current requirement
360 mA
Bus current requirement
Power dissipation in W
5 W
Power dissipation in W
Module format
Standard
Module format
Net Weight
0.7 lb(US) (0.3 kg)
Net Weight
Standards
UL 508
CSA C22.2 No 142
CSA C22.2 No 142
Standards
Product Certifications
FM Class 1 Division 2
cUL
cUL
Product Certifications
Resistance to electrostatic discharge
4 kV contact IEC 801-2
8 kV on air IEC 801-2
8 kV on air IEC 801-2
Resistance to electrostatic discharge
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3
Resistance to electromagnetic fields
Ambient Air Temperature for Operation
32…140 °F (0…60 °C)
Ambient Air Temperature for Operation
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Storage
Relative Humidity
95 % without condensation
Relative Humidity
Operating altitude
<= 16404.2 ft (5000 m)
Operating altitude
Category
US1PC2118155
Category
Discount Schedule
PC21
Discount Schedule
GTIN
3595861147997
GTIN
Returnability
Yes
Returnability
Country of origin
FR
Country of origin
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
1.81 in (4.6 cm)
Package 1 Height
Package 1 Width
6.50 in (16.5 cm)
Package 1 Width
Package 1 Length
12.20 in (31.0 cm)
Package 1 Length
Package 1 Weight
15.3 oz (433.0 g)
Package 1 Weight
Warranty
18 months
