140ACI03000

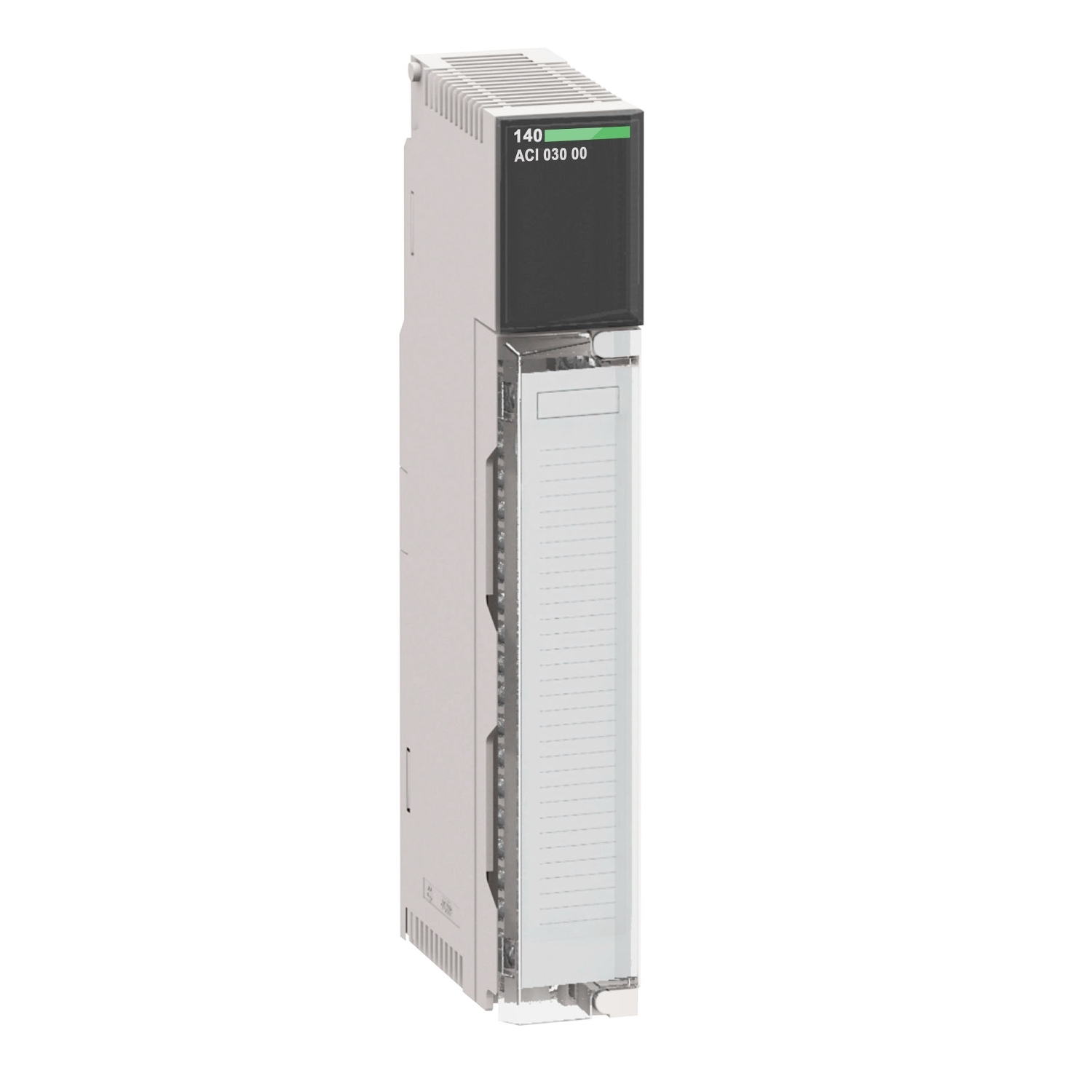

ماژول ورودی آنالوگ مدیکون کوانتوم، 8 I، ماژول چند برد مدل 140ACI03000
analog input module Modicon Quantum - 8 I multirange
×
![]()
مشخصات کامل
Range of Product
Modicon Quantum automation platform
Range of Product
Product or Component Type
Analogue input module
Product or Component Type
Type of filter
Single pole low pass - 3 dB at 15 Hz +/- 20 %
Type of filter
Analogue input number
8
Analogue input number
Input type
Differential
Input type
Addressing requirement
9 input words
Addressing requirement
Analogue input resolution
12 bits
Analogue input resolution
Linear measuring range
1...5 V
4...20 mA
4...20 mA
Linear measuring range
Absolute maximum input
50 V DC
25 mA
25 mA
Absolute maximum input
Input impedance
250 Ohm current +/- 0.01 %
> 20 MOhm voltage
> 20 MOhm voltage
Input impedance
Absolute accuracy error
+/- 0.05 % of full scale
+/- 0.1 % of full scale maximum
+/- 0.1 % of full scale maximum
Absolute accuracy error
Linearity error
+/- 0.04 %
Linearity error
Accuracy drift according to temperature
+/- 0.0025 % of full scale/°C
<= 0.005 % of full scale/°C
<= 0.005 % of full scale/°C
Accuracy drift according to temperature
Common mode rejection
> - 72 dB 60 Hz
Common mode rejection
Isolation between channels and bus
1000 V DC
3000 V DC 60 s
3000 V DC 60 s
Isolation between channels and bus
Isolation between channels
30 V DC
Isolation between channels
Update time
5 ms
Update time
Fault type
Broken wire 4...20 mA
Undervoltage range 1...5 V
Undervoltage range 1...5 V
Fault type
Marking
CE
Marking
Local signalling
for bus communication is present (Active) 1 LED (green)
for external fault 1 LED (red)
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)
for external fault 1 LED (red)
for channel is turned on 8 LEDs (green)
for channel fault 8 LEDs (red)
Local signalling
Bus current requirement
240 mA
Bus current requirement
Power dissipation in W
2 W
Power dissipation in W
Module format
Standard
Module format
Net Weight
0.7 lb(US) (0.3 kg)
Net Weight
Standards
UL 508
CSA C22.2 No 142
CSA C22.2 No 142
Standards
Product Certifications
FM Class 1 Division 2
cUL
cUL
Product Certifications
Resistance to electrostatic discharge
4 kV contact IEC 801-2
8 kV on air IEC 801-2
8 kV on air IEC 801-2
Resistance to electrostatic discharge
Resistance to electromagnetic fields
9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3
Resistance to electromagnetic fields
Ambient air temperature for operation
32…140 °F (0…60 °C)
Ambient air temperature for operation
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Ambient Air Temperature for Storage
Relative Humidity
95 % without condensation
Relative Humidity
Operating altitude
<= 16404.2 ft (5000 m)
Operating altitude
Category
US1PC2118155
Category
Discount Schedule
PC21
Discount Schedule
GTIN
3595861126565
GTIN
Returnability
Yes
Returnability
Country of origin
US
Country of origin
Unit Type of Package 1
PCE
Unit Type of Package 1
Number of Units in Package 1
1
Number of Units in Package 1
Package 1 Height
1.89 in (4.8 cm)
Package 1 Height
Package 1 Width
6.50 in (16.5 cm)
Package 1 Width
Package 1 Length
12.20 in (31.0 cm)
Package 1 Length
Package 1 Weight
15.9 oz (450.0 g)
Package 1 Weight
Warranty
18 months
